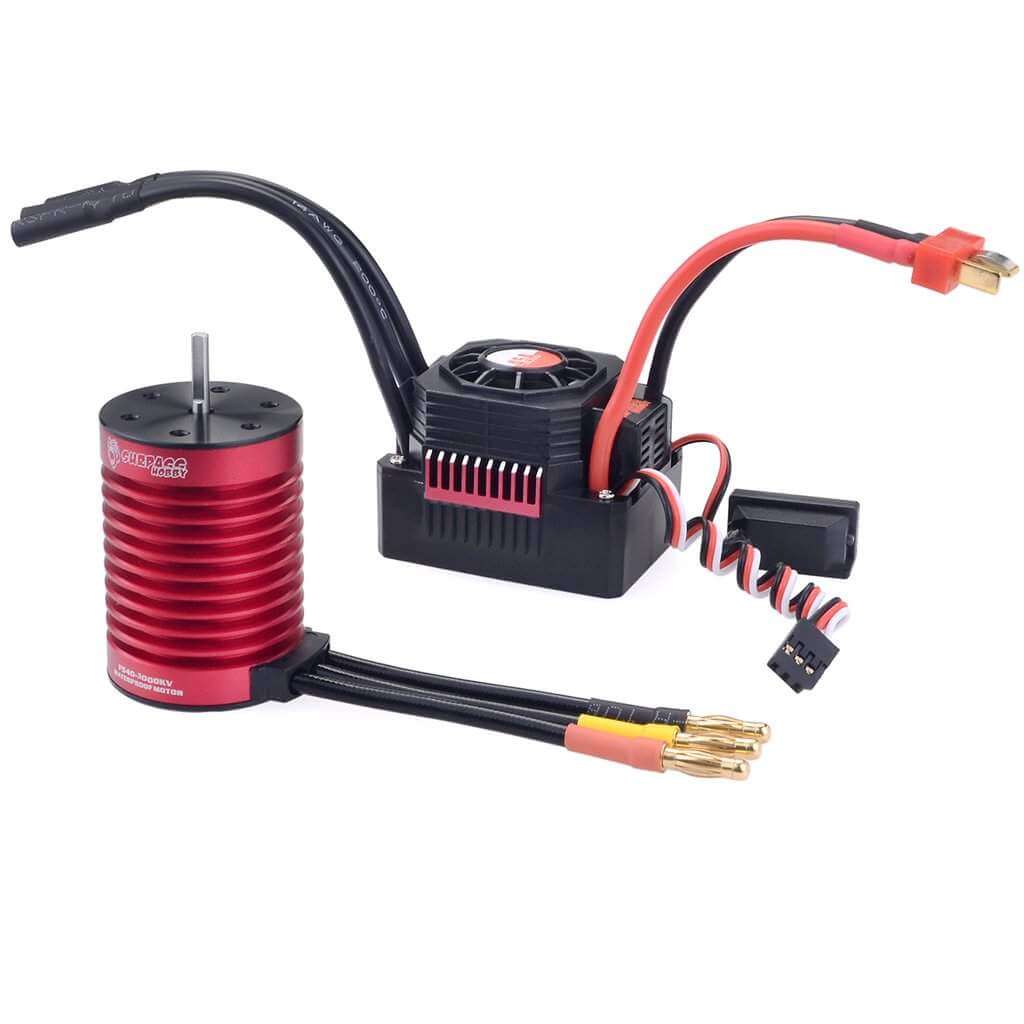

Surpass Hobby Waterproof F540 Brushless Motor + 45A ESC
Surpass Hobby Waterproof F540 Brushless Motor + 45A ESC
Couldn't load pickup availability
- FREE Shipping for Orders over $29!
- Dispatch Within 1 Business Day!
- 30-Day Change of Mind Returns!
Take your RC car's performance to the next level with the Surpass Hobby Waterproof F540 Brushless Motor and 45A ESC Combo. Designed for precision, power, and reliability, this combo is perfect for serious RC enthusiasts who want to maximize energy efficiency and control. Whether you're tearing up the track or conquering rugged off-road terrain, this combo is engineered to deliver unmatched performance.

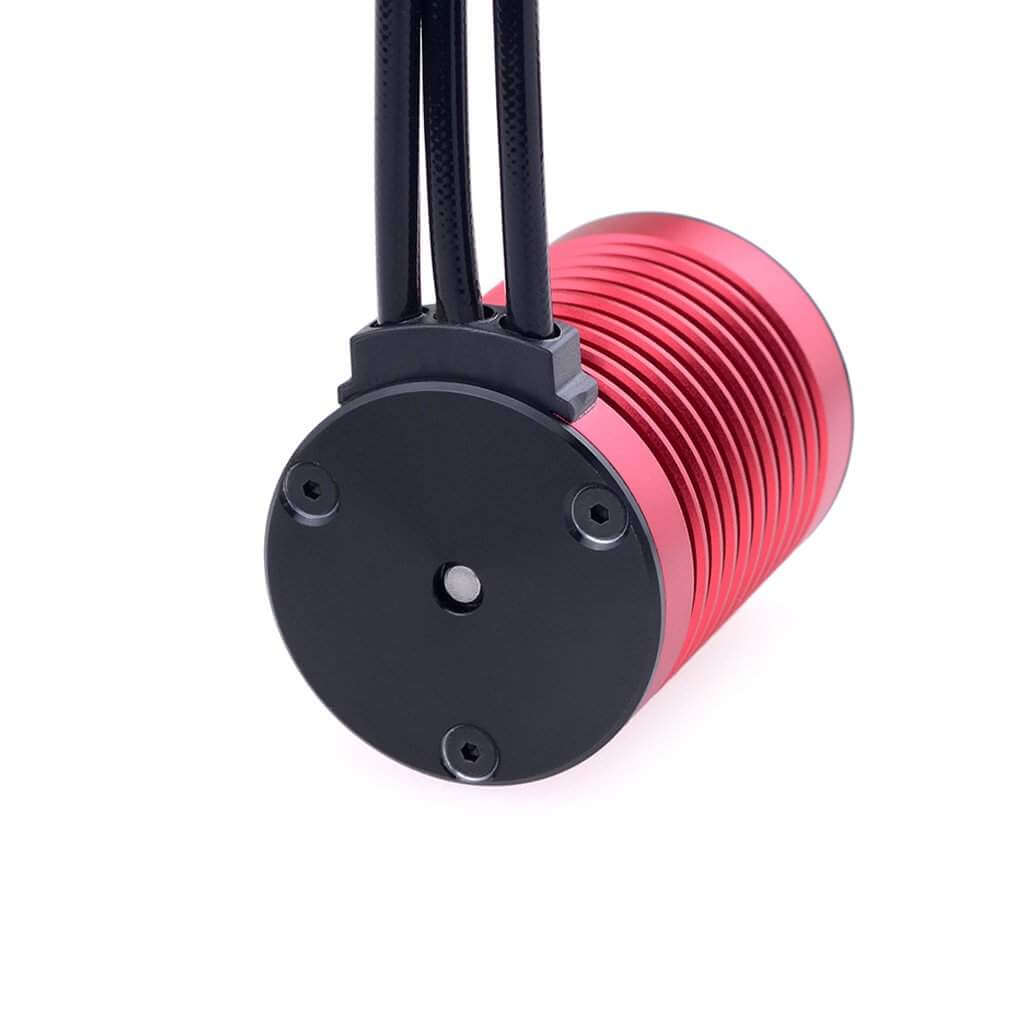

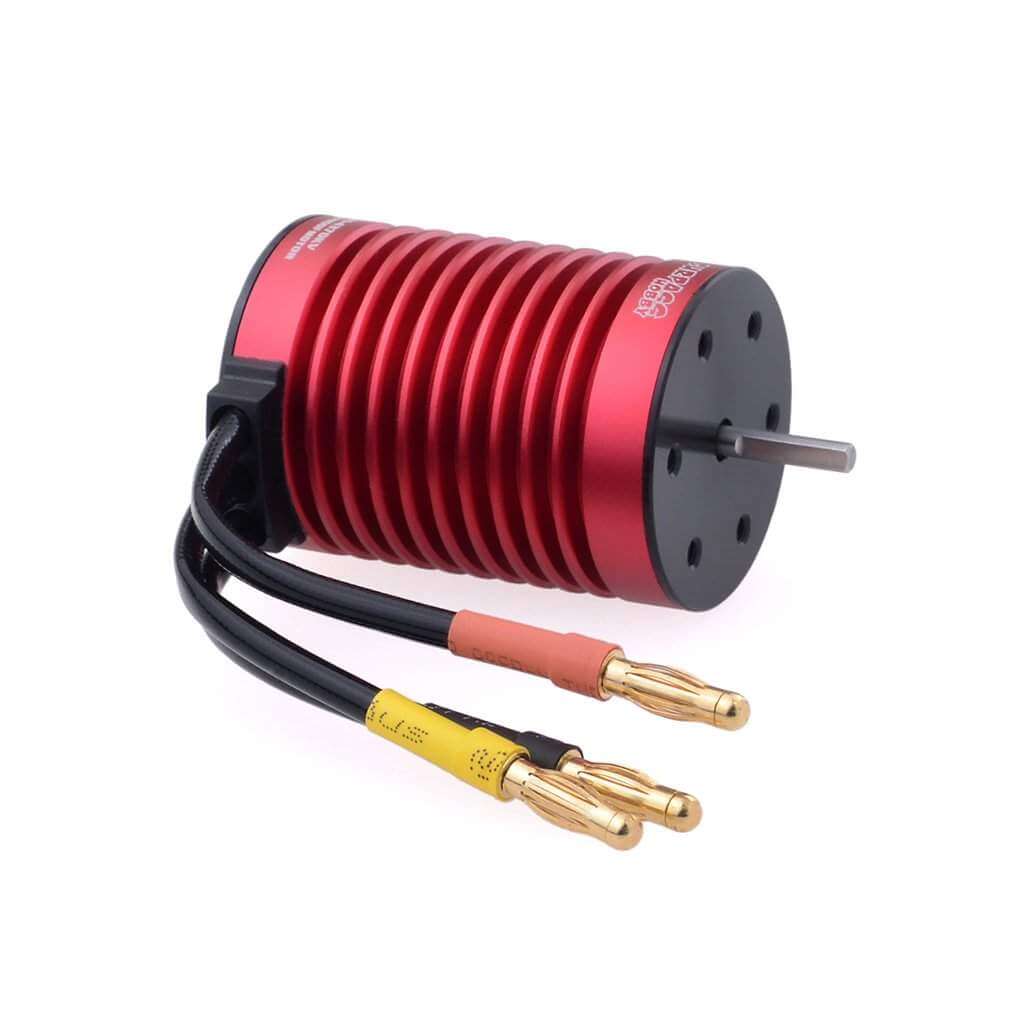

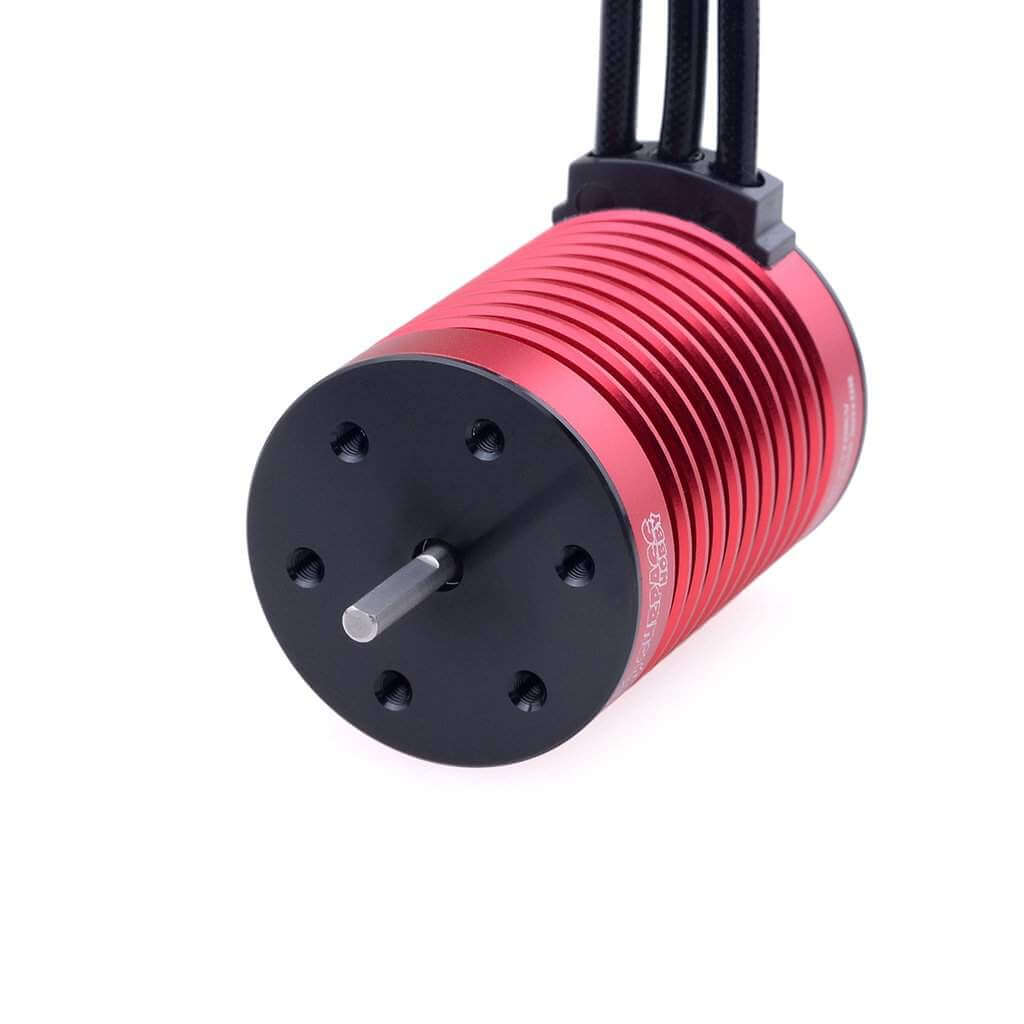

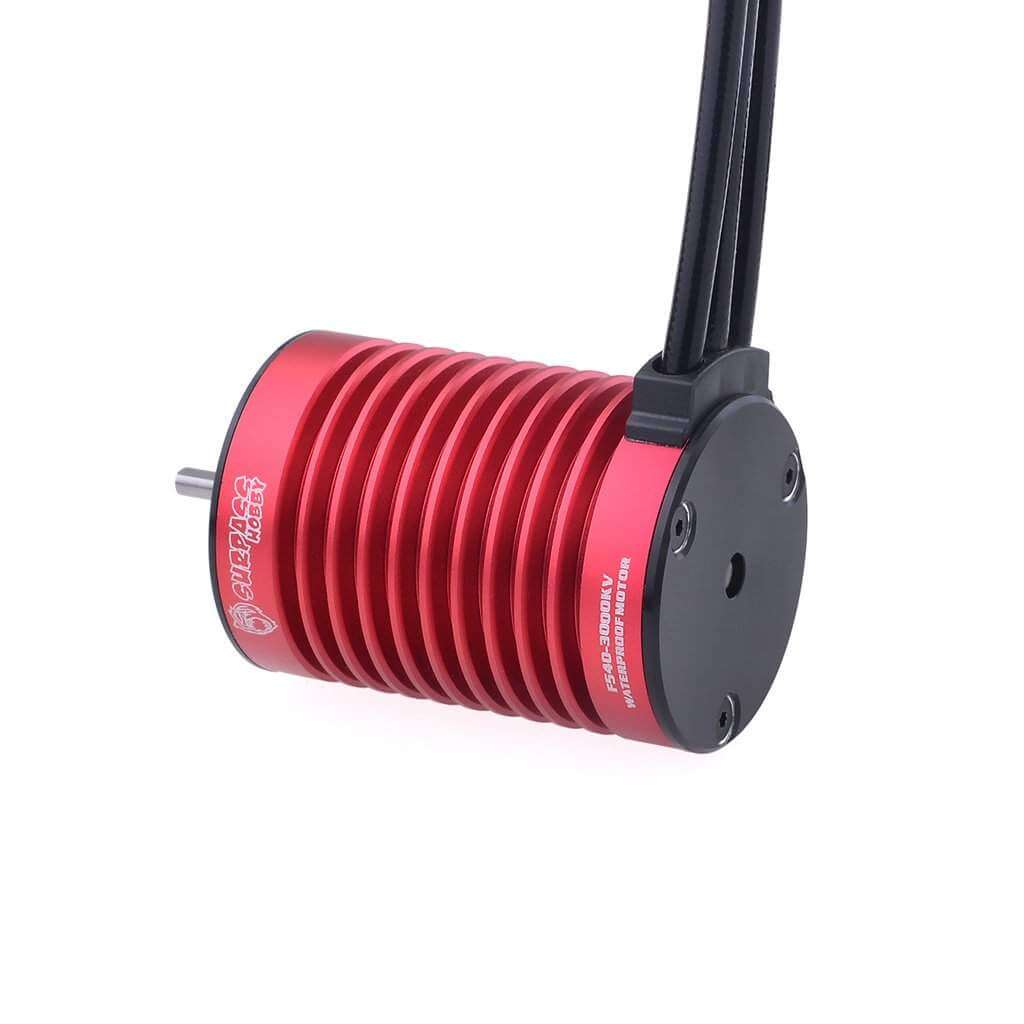

F540 Brushless Motor – Power and Precision
This high-torque, 4-pole, 12-slot motor features precision engineering for maximum energy conversion. Equipped with CNC-machined 6061 T6 billet aluminum heatsink can, high-purity copper windings, and a waterproof design, the F540 motor ensures smooth, reliable operation in any weather. Its precision-balanced rotor and oversized ABEC5 bearings allow for high RPMs while maintaining durability and efficiency.
Motor Specifications:
- Size: 35.8mm x 50mm
- Motor Shaft Diameter: 3.175mm
- Motor Shaft Length: 15mm
- Wattage: 820W
- Max RPM: 50,000
- Max Voltage: <18V
- Max Amps: 66A
- Rotor Poles: 4
- Universal Fit: Fits all 1/10 brushless cars with a multi-mounting system for M3 screws
- Waterproof Design: Ideal for all-weather races
- Removable/Replaceable Rotor for easy maintenance

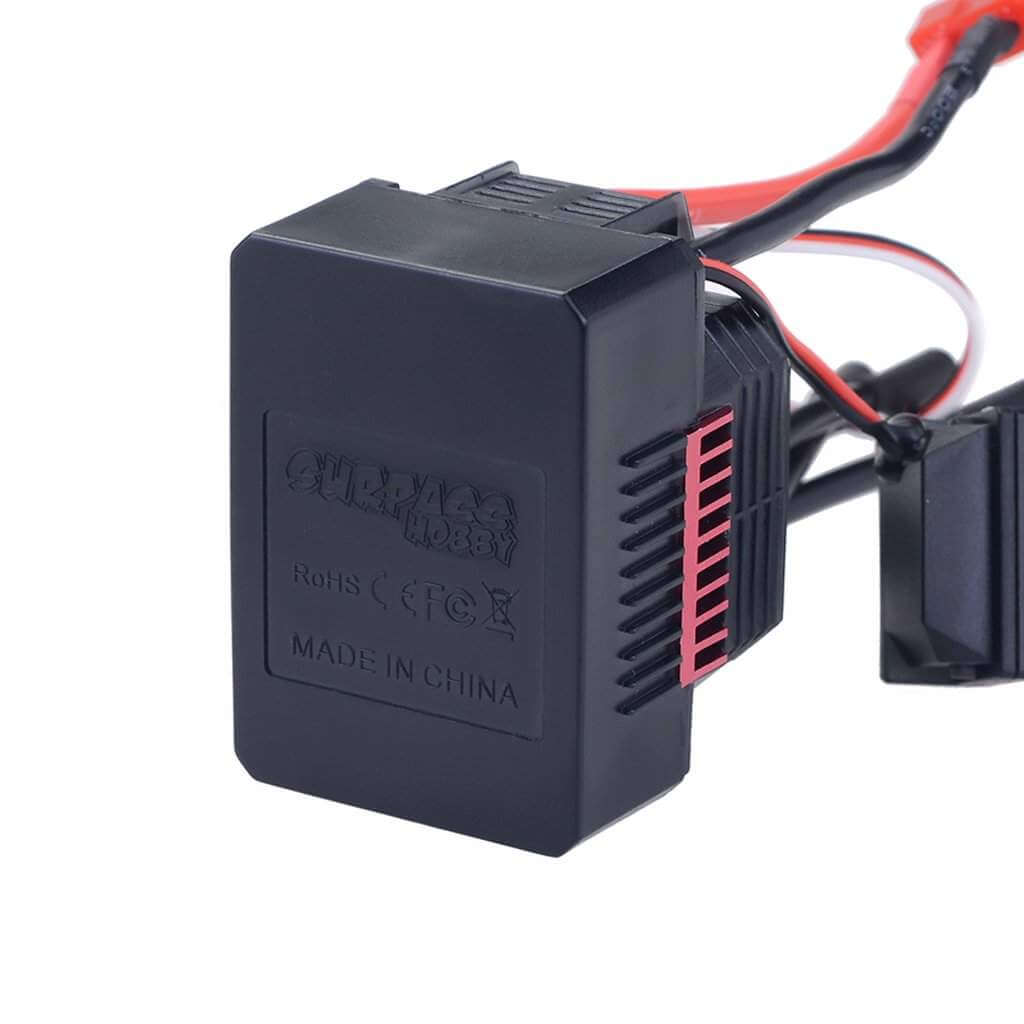

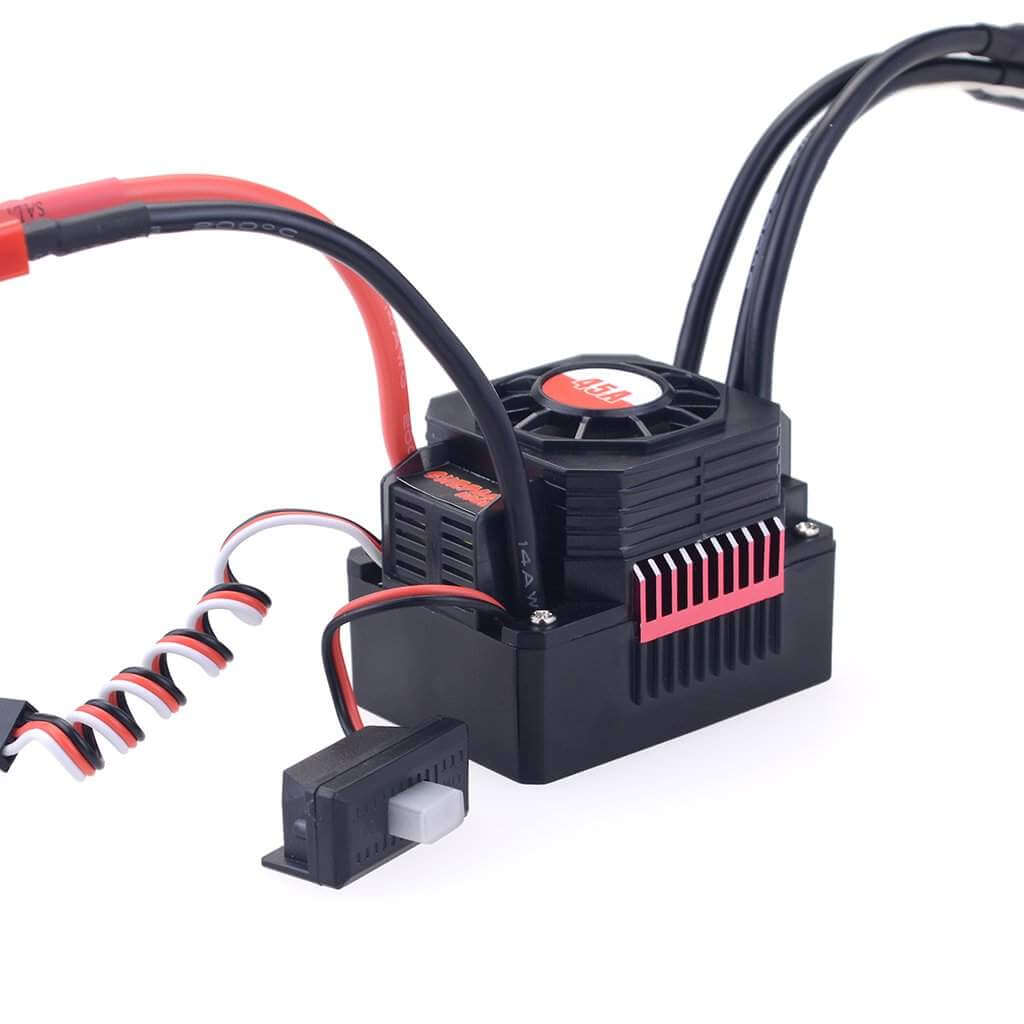

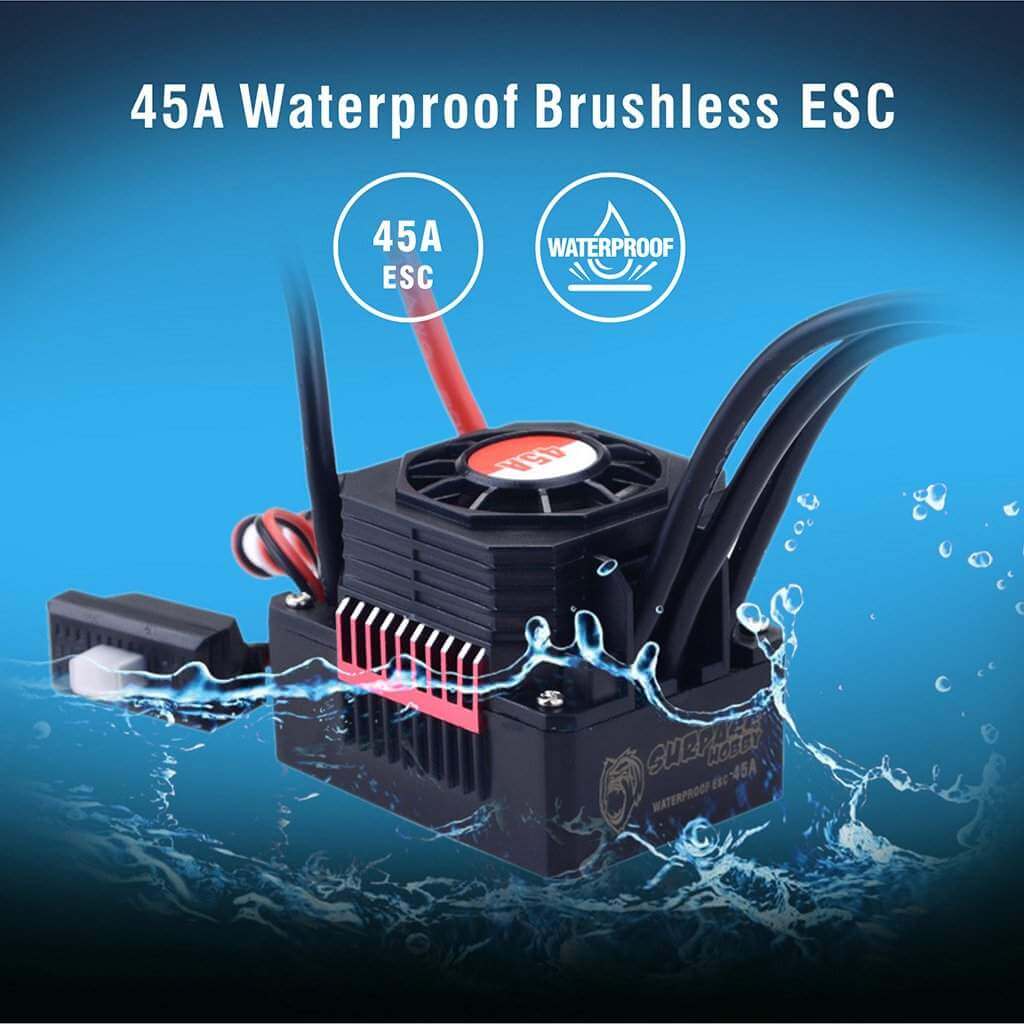

45A ESC – Complete Control and Protection
The 45A ESC is designed specifically for RC cars, offering excellent start-up, acceleration, and linear throttle control. Its waterproof and dust-proof construction ensures reliable performance even in harsh conditions. With multiple safety protections—such as low voltage cut-off, overheat protection, and motor block protection—this ESC is built for durability. It’s also easy to program and compatible with a pocket-sized program card, allowing for fine-tuned performance adjustments.
ESC Specifications:
- Continuous/Burst Current: 45A / 240A
- Battery Compatibility: 2-3S LiPo / 4-9 Cells NiMH
- BEC Output: 5.8V / 3A (Switch Mode)
- Dimensions: 51.5mm x 68.5mm x 38.5mm
- Weight: 76g
- Waterproof Design: Suitable for all-weather use (Note: Uninstall the cooling fan before prolonged water use, and dry thoroughly after to prevent rusting)
Key Features:
- High-torque 4-pole motor for maximum energy conversion
- Waterproof and dust-proof ESC for all-weather performance
- Strong resistant current capability with excellent heat dissipation
- Multiple protections: Low voltage cut-off, overheat protection, throttle signal loss, and motor blocked protection
- Compatible with sensorless brushless motors
- Universal fit for all 1/10 brushless RC cars
- Precision balanced rotor for maximum RPM and reliability
- Easily programmable ESC with pocket-sized program card compatibility

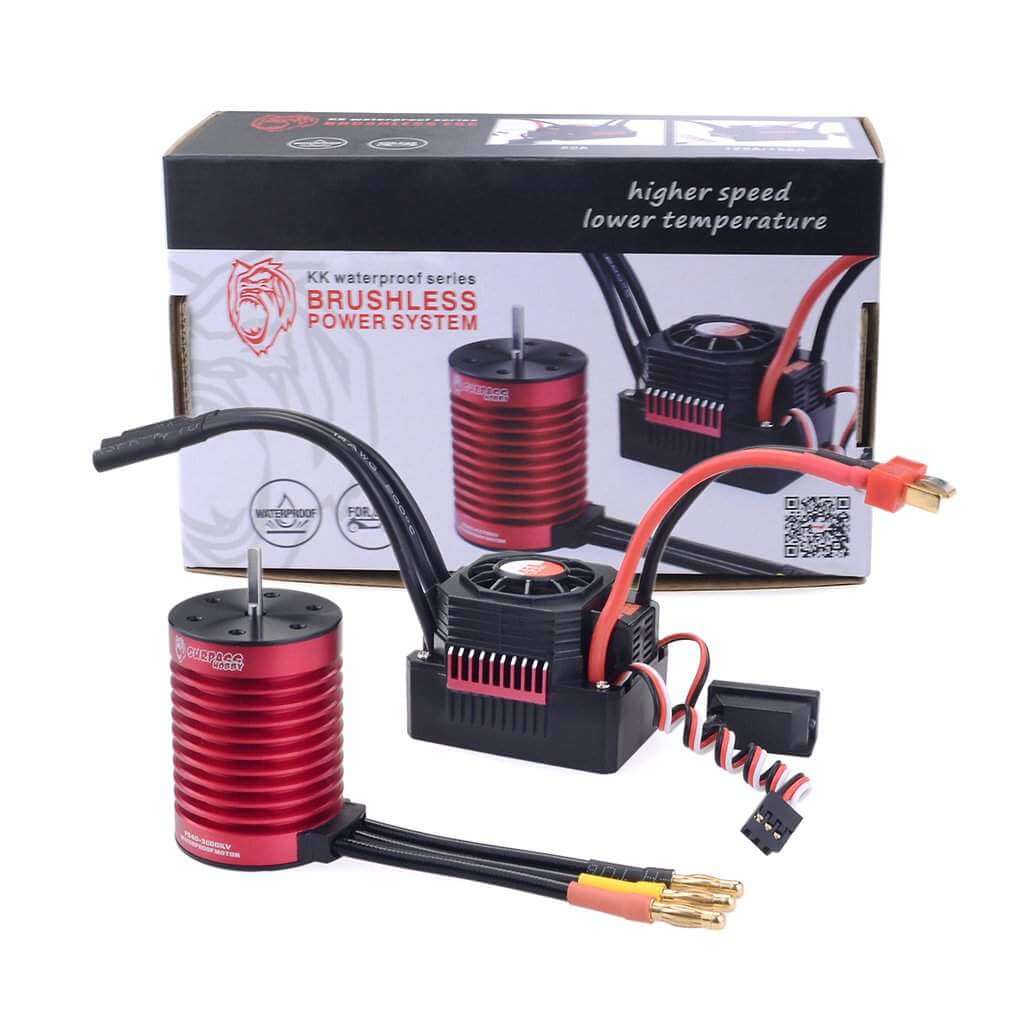

Package Includes:
- 1x Surpass Hobby KK F540 Brushless Motor
- 1x Surpass Hobby Waterproof 45A ESC
- 1x English Manual
