Surpass Hobby KK F540 Waterproof Brushless Motor

Surpass Hobby KK F540 Waterproof Brushless Motor

Regular price $45.95 AUD
Regular price $54.95 AUD Sale price $45.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
  • FREE Shipping for Orders over $29!
  • All orders dispatched within 24 hours!
  • Easy 30 Day Returns!

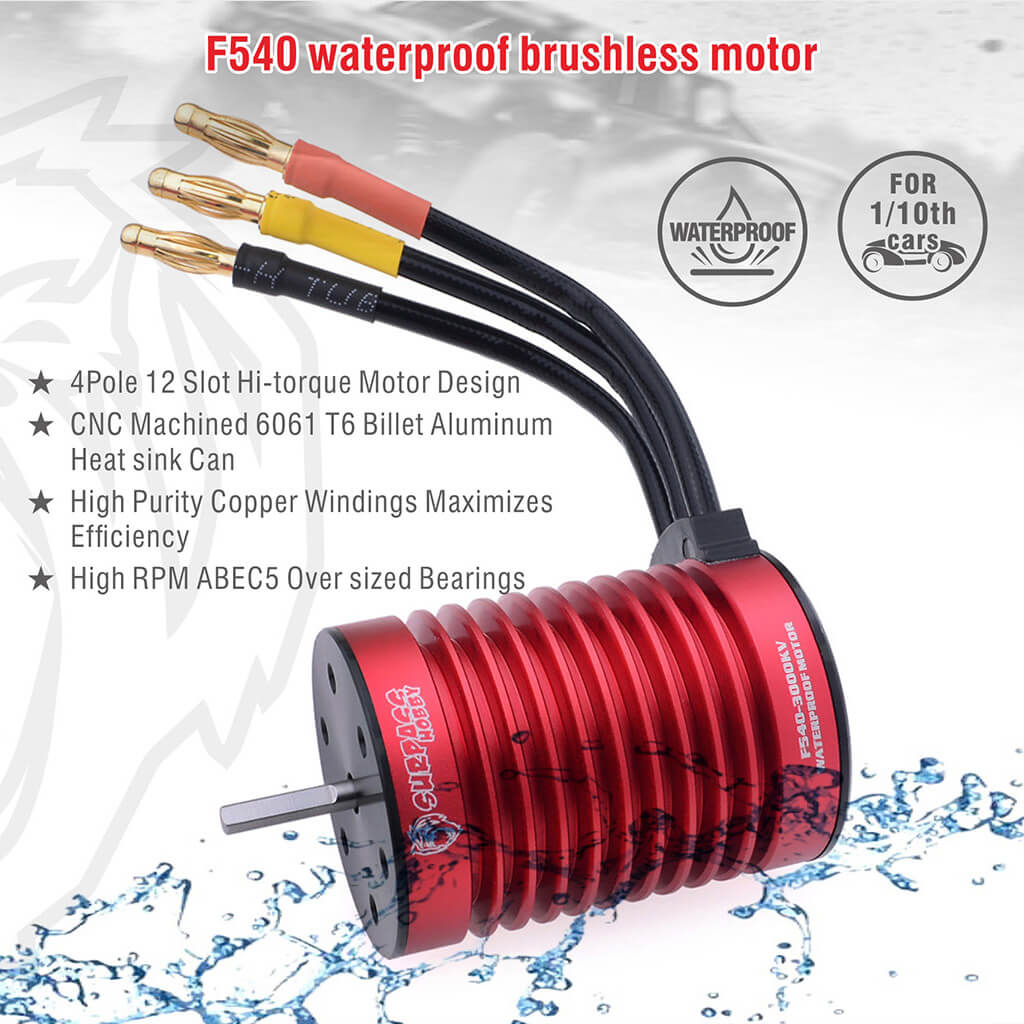

Elevate your RC car's performance with the Surpass Hobby F540 Motor, designed for maximum energy conversion and exceptional reliability. Featuring a high-torque 4-pole, 12-slot design, this motor delivers unparalleled power, speed, and smoothness—ideal for demanding RC enthusiasts looking for peak performance in their 1/10 brushless vehicles.

Built for Efficiency and Power
Engineered with high-purity copper windings, the F540 maximizes efficiency, ensuring long-lasting, reliable power output. Its precision-balanced rotor offers unmatched smoothness, while the CNC machined 6061 T6 billet aluminium heatsink can keeps the motor cool, even during intense operation.

Advanced Design for Optimal Performance
This motor is equipped with a waterproof design, making it suitable for all-weather use. The high-RPM ABEC5 oversized bearings and super-thin (0.35mm) stator laminations further enhance durability and performance, allowing for smooth operation even at maximum RPM.

Key Features:

  • High-torque 4-pole, 12-slot motor design for superior power
  • CNC-machined aluminum heatsink can for optimal cooling
  • Waterproof construction for all-weather performance
  • High-purity copper windings for maximum efficiency
  • Precision-balanced rotor for smooth, reliable operation
  • Oversized ABEC5 bearings for high RPM stability
  • Universal fit for 1/10 brushless cars with a multi-mounting system
  • Removable and replaceable rotor for easy maintenance

Specifications:

  • Brand: Surpass Hobby
  • Series: KK

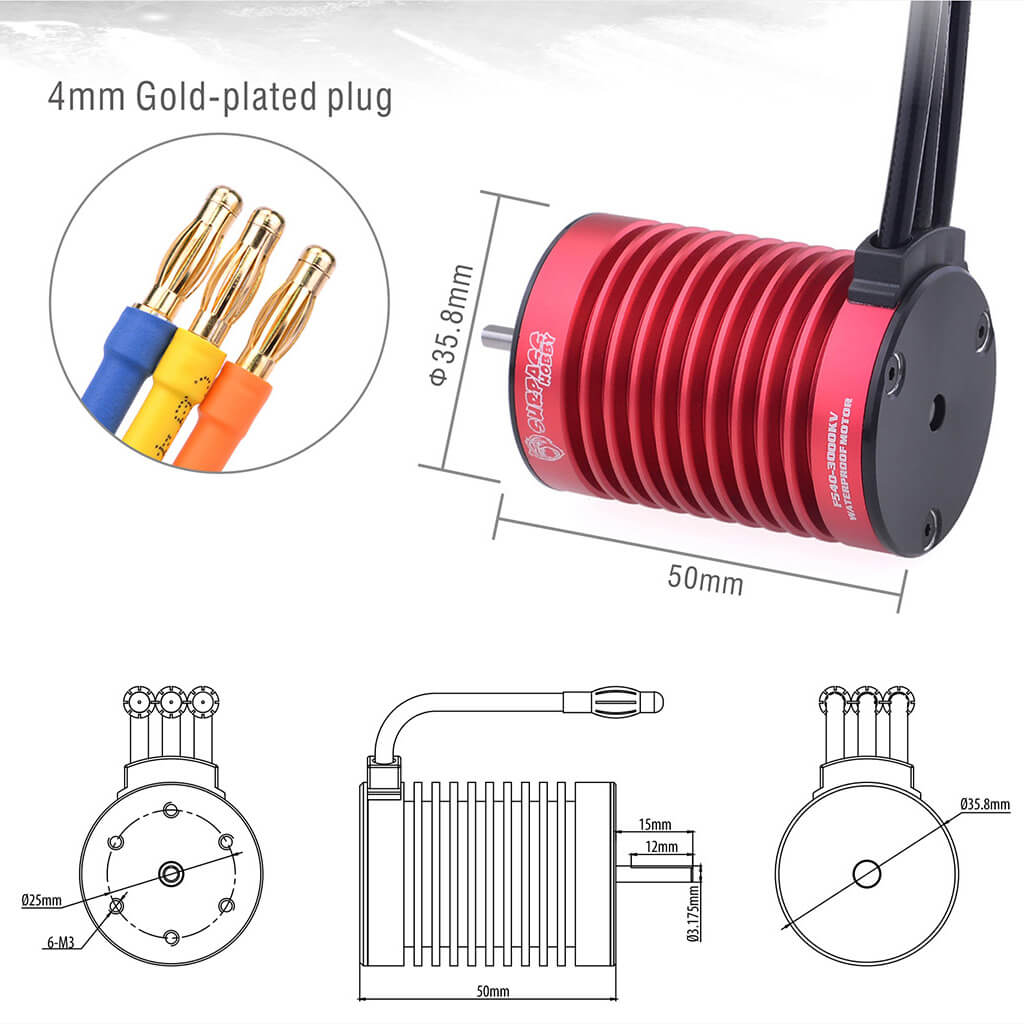

  • Motor Size: 35.8mm x 50mm

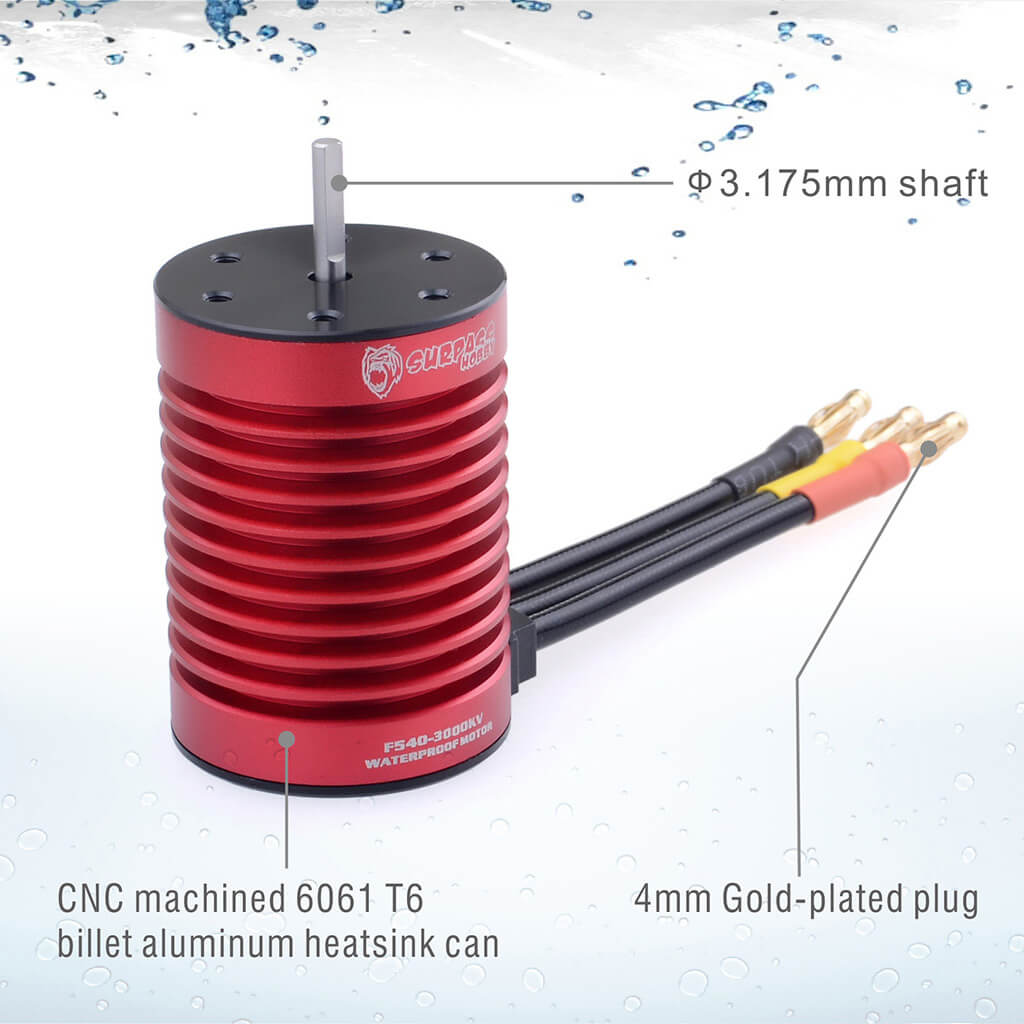

  • Motor Shaft Diameter: 3.175mm
  • Motor Shaft Length: 15mm
  • Wattage: 820W
  • Max RPM: 50,000
  • Max Voltage: <18V
  • Max Amps: 66A
  • Rotor Poles: 4
  • Connector: 4.0mm gold
  • Weight: 148g

What’s Included:

  • 1x Surpass Hobby F540 Motor
  • 1x English Manual
