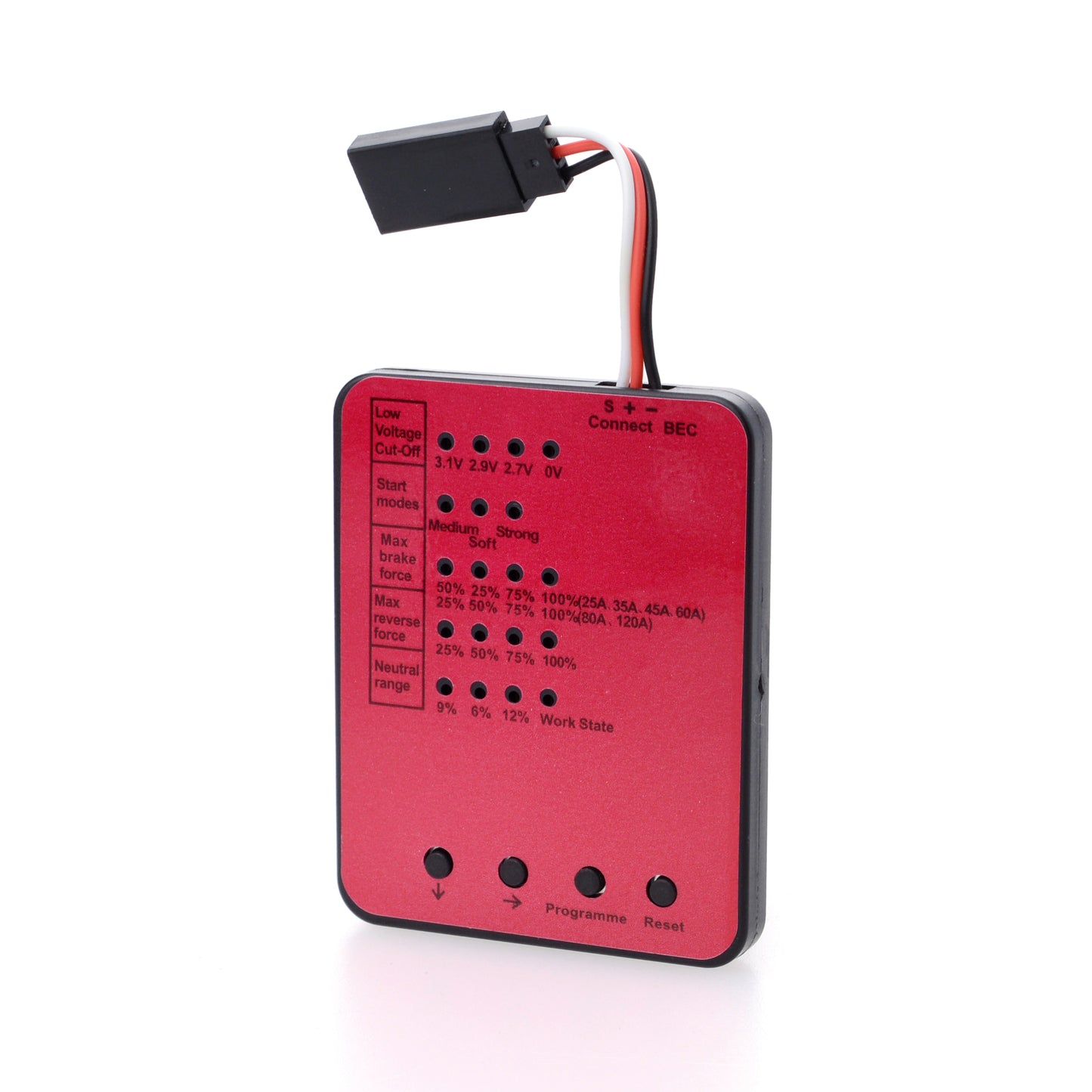

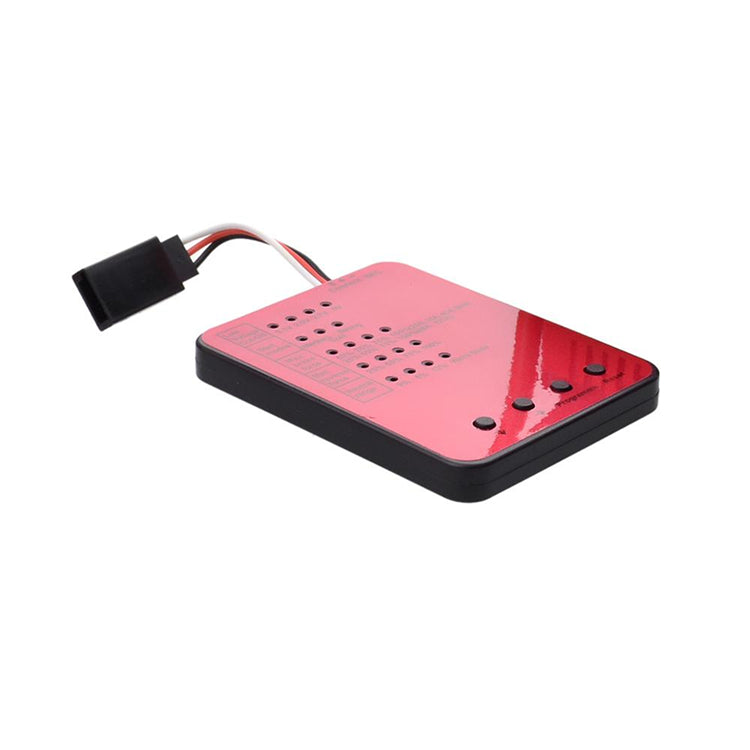

Programming card for KK series brushless ESC

Programming card for KK series brushless ESC

Regular price $18.95 AUD
Regular price Sale price $18.95 AUD
Sale Sold out
Shipping calculated at checkout.
  • FREE Shipping for Orders over $29!
  • Secure Checkout for Worry-Free Shopping!
  • Easy 30 Day Returns!

Estimated Shipping Widget will be displayed here! (with custom color)

  • Programming card for Surpass Hobby KK series brushless ESC
  • Low voltage detection is 3.1V, 2.9V, 2.7V, and no detection in sequence.
  • The startup mode is normal, soft, and enhanced in sequence.
  • Maximum braking force (25A, 45A, 60A) in order of 50%, 25%, 75%, 100% (default 50%). (80A, 120A) 25%, 50%, 75%, 100% (default 25%).
  • The maximum reversing strength is 25%, 50%, 75%, and 100%.
  • The width of the center point is 9%, 6%, and 12% in this order.

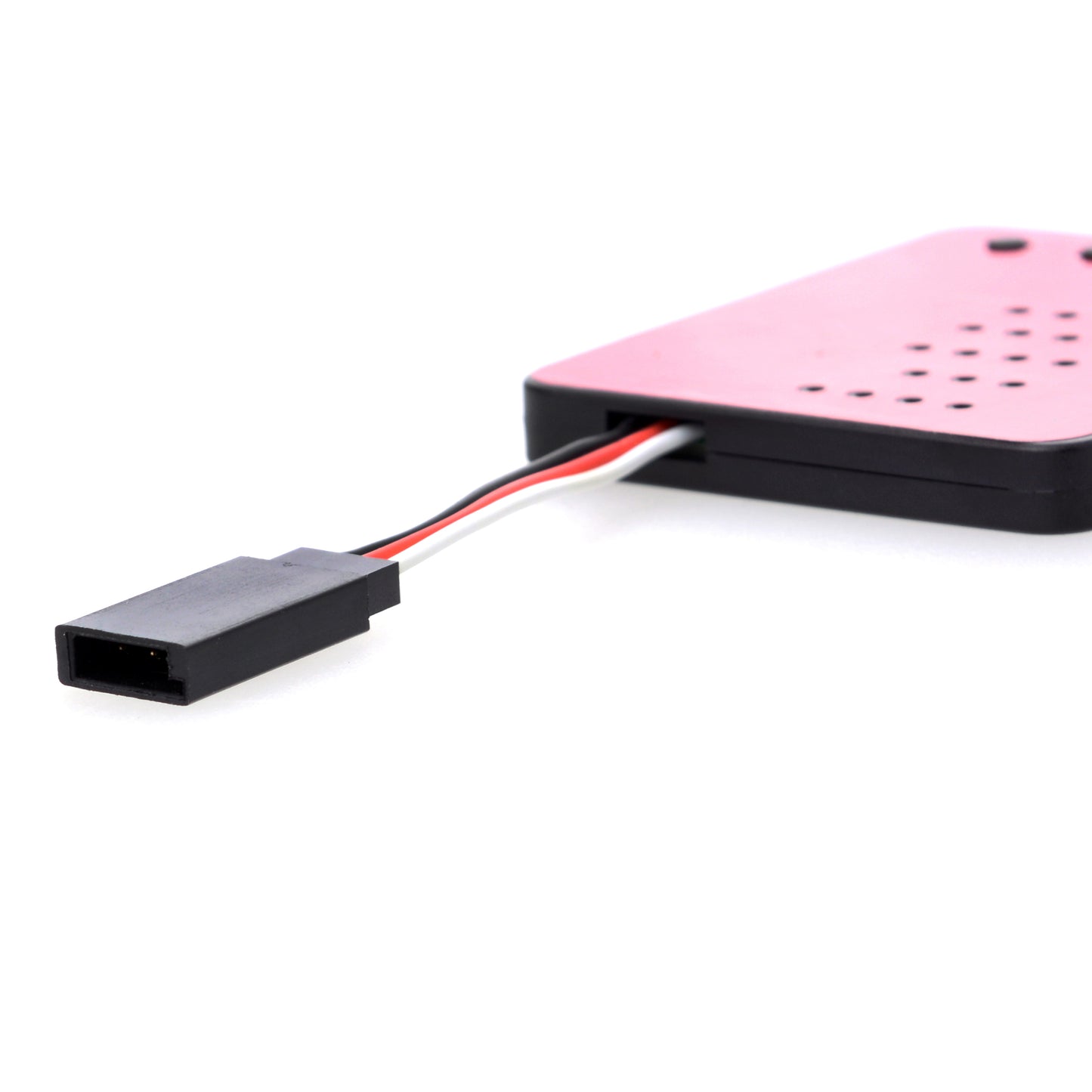

  • The BEC cable is connected according to the color direction.
