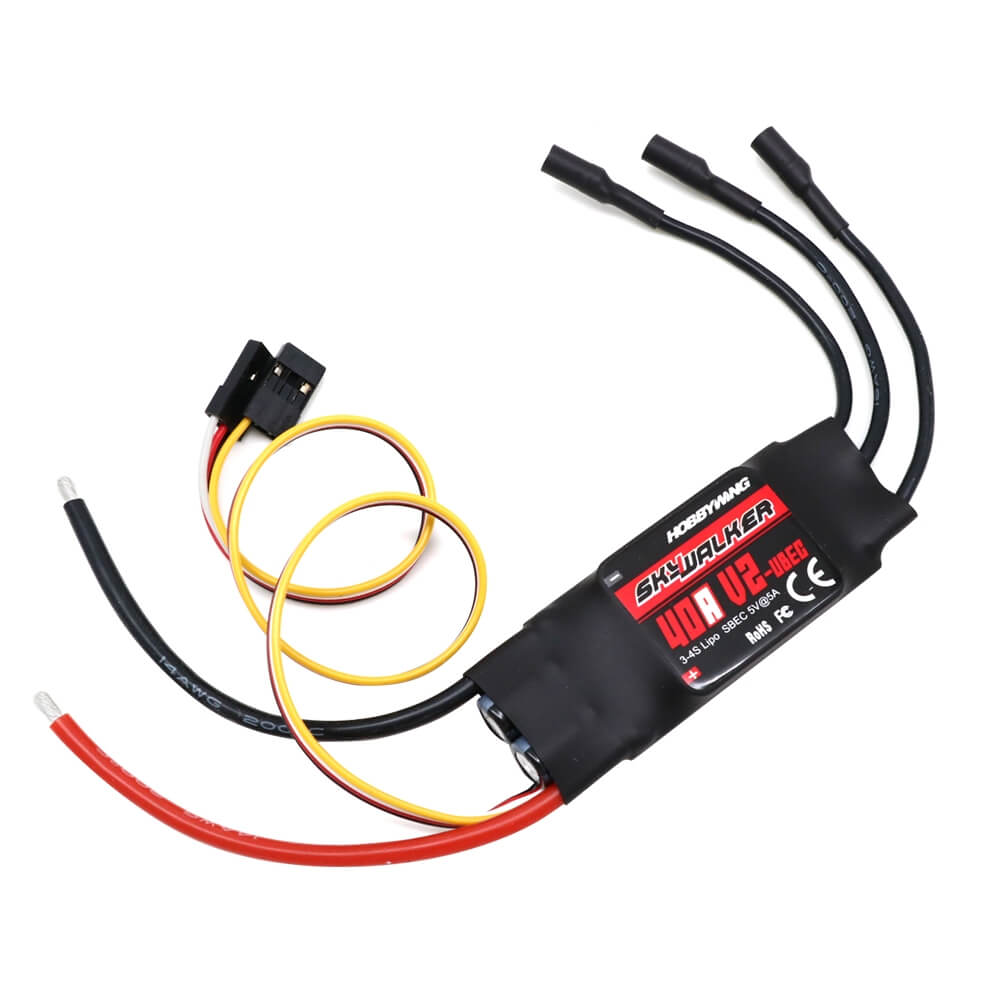

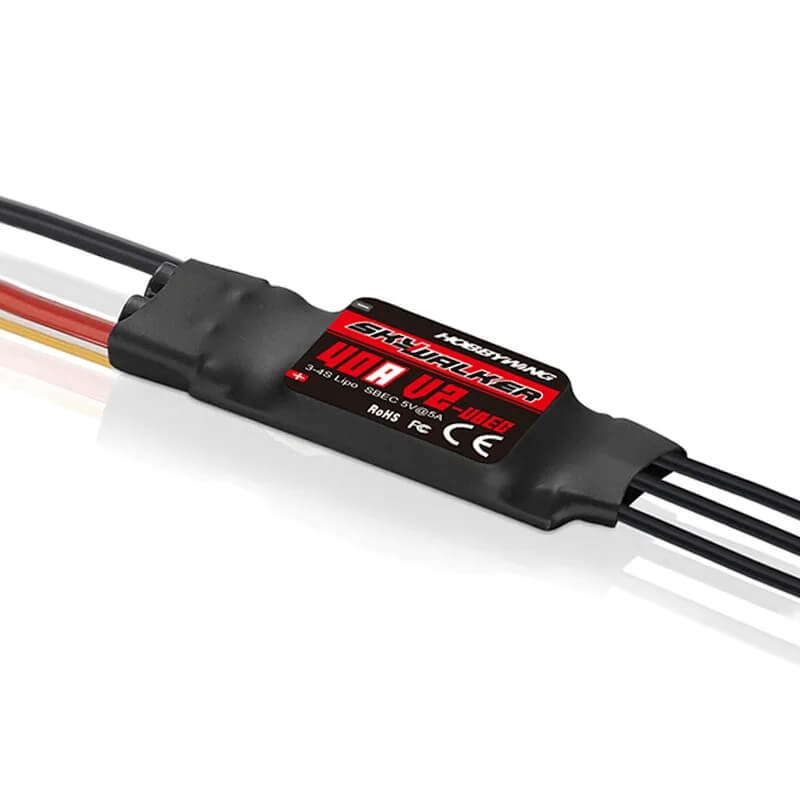

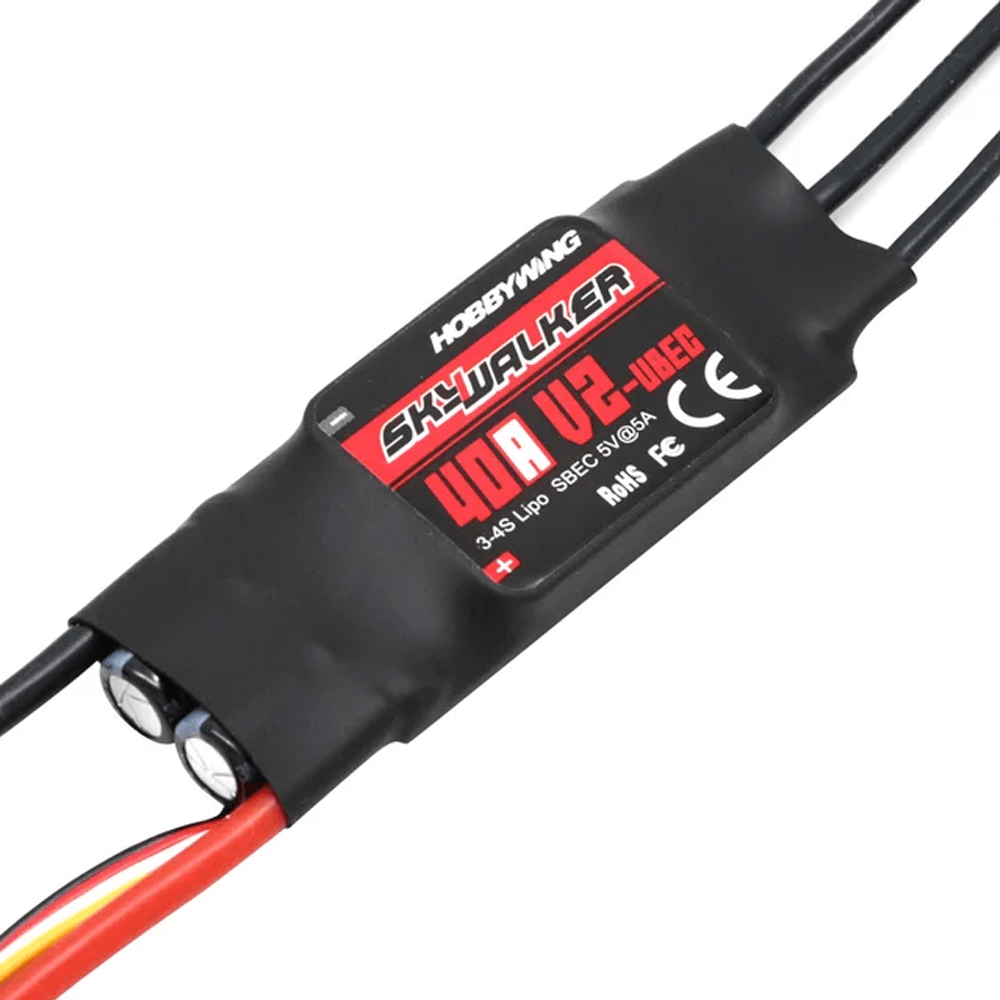

HobbyWing Skywalker V2 40A ESC - 5A BEC
HobbyWing Skywalker V2 40A ESC - 5A BEC
Couldn't load pickup availability
- FREE Shipping for Orders over $29!
- Dispatch Within 1 Business Day!
- 30-Day Change of Mind Returns!
Unlock the full potential of your RC aircraft with the HobbyWing Skywalker 40A V2 Brushless ESC. Specially designed for air applications, this ESC combines advanced technology and robust protection features to deliver exceptional performance and efficiency. Whether you're a seasoned pilot or a beginner, the Skywalker 40A V2 is the perfect upgrade for your aircraft.
Key Features:
32-Bit Microprocessor: Equipped with a high-performance 32-bit microprocessor running at 96MHz, this ESC ensures precise control and fast response, enhancing your aircraft's flight performance.
DEO Technology: The Driving Efficiency Optimization (DEO) technology significantly improves throttle response, driving efficiency, and reduces the ESC temperature, allowing for smoother and more efficient flights.
Brake Modes: The ESC features both normal and reverse brake modes, which can effectively shorten the landing distance of your aircraft, providing more control during landings.
Search Mode: The search mode emits alarm beeps, helping you locate your aircraft if it falls into a complex environment, ensuring you can always retrieve your model safely.
Multiple Protection Features: The Skywalker ESC is built with comprehensive protection mechanisms, including start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, over-load protection, abnormal input voltage protection, and throttle signal loss protection. These features prolong the life of your ESC and safeguard your electronics.
Separate Programming Cable: Connect the ESC to an optional LED program box (sold separately) for easy programming anytime, anywhere, allowing you to customize your ESC settings to suit your needs.
Specifications:
- Model: 40A V2
- Input Voltage: 3-4S LiPo
- BEC Output: 5V @ 5A (Switch-mode)
- Continuous Current: 40A
- Peak Current: 60A
- Dimensions: 60x25x8mm (LxWxH)
- Weight: 36g

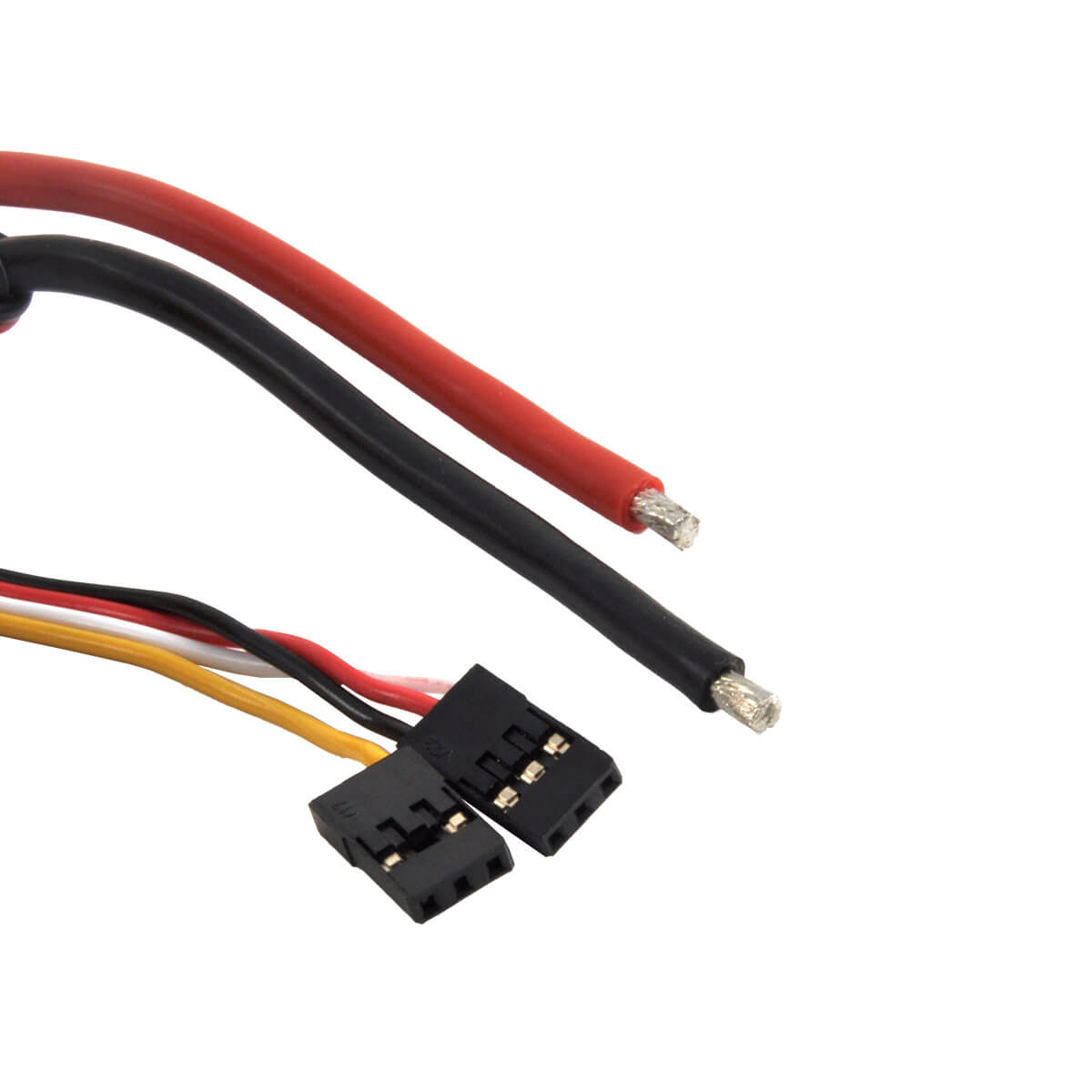

- Input Wire: 14AWG-100mm
- Output Wire: 16AWG-75mm

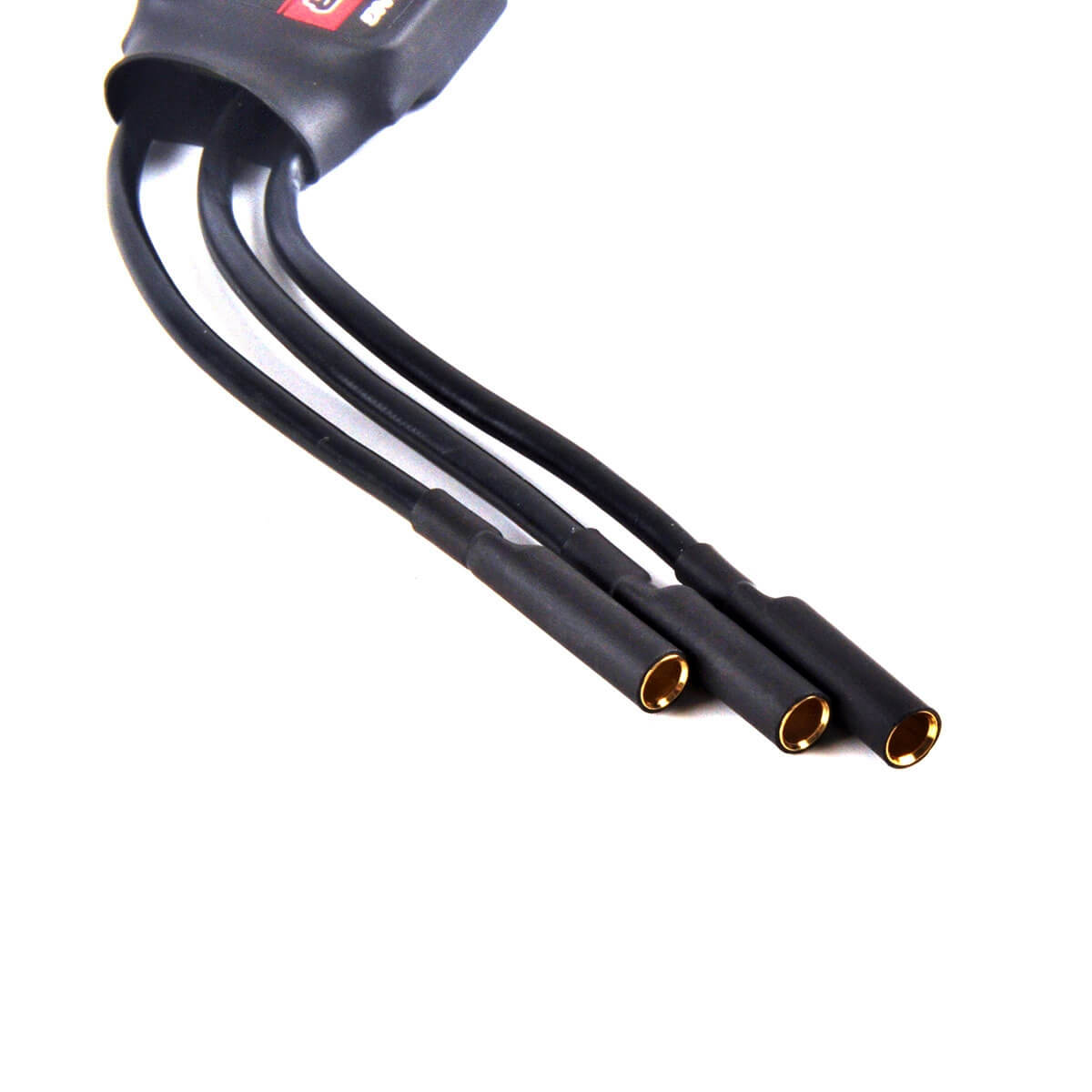

- Output Connectors: 3.5mm Bullets (Female)

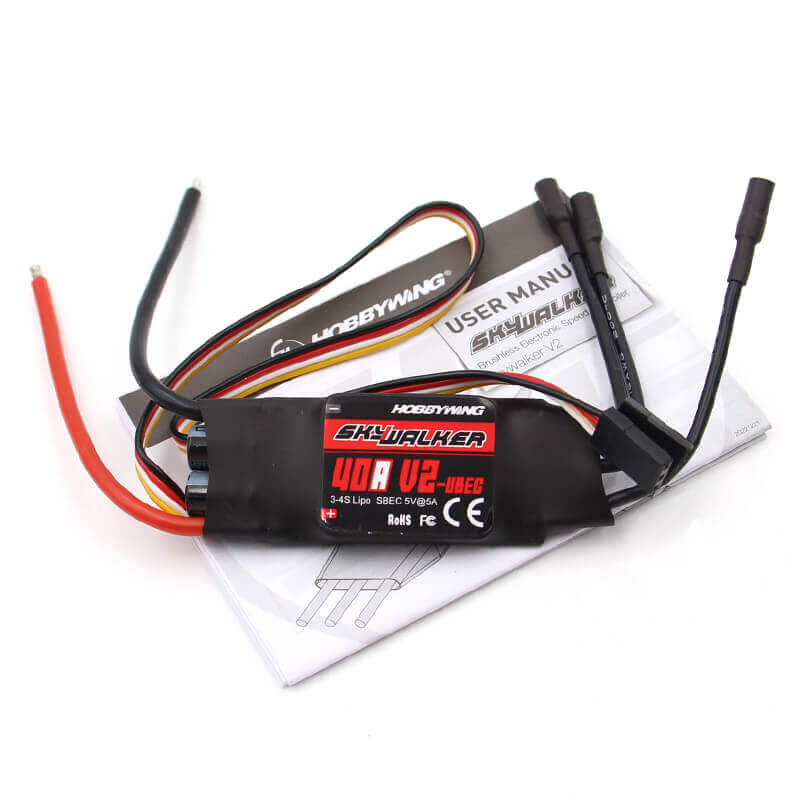

Package Includes:
- 1x Hobbywing Skywalker V2 40A ESC
- 1x User Manual
Elevate your flying experience with the Hobbywing Skywalker 40A V2 Brushless ESC—engineered for reliability, performance, and efficiency in every flight. Perfect for pilots seeking superior control and protection in their RC aircraft.
