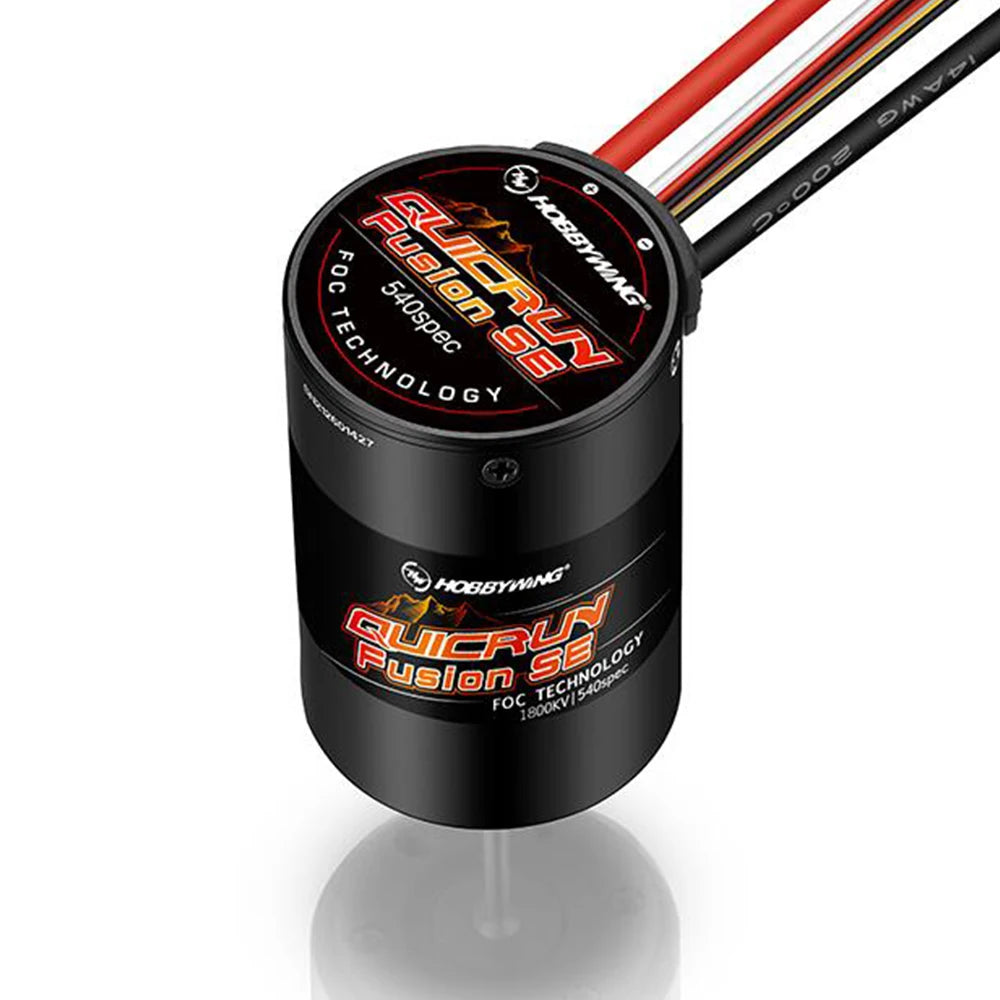

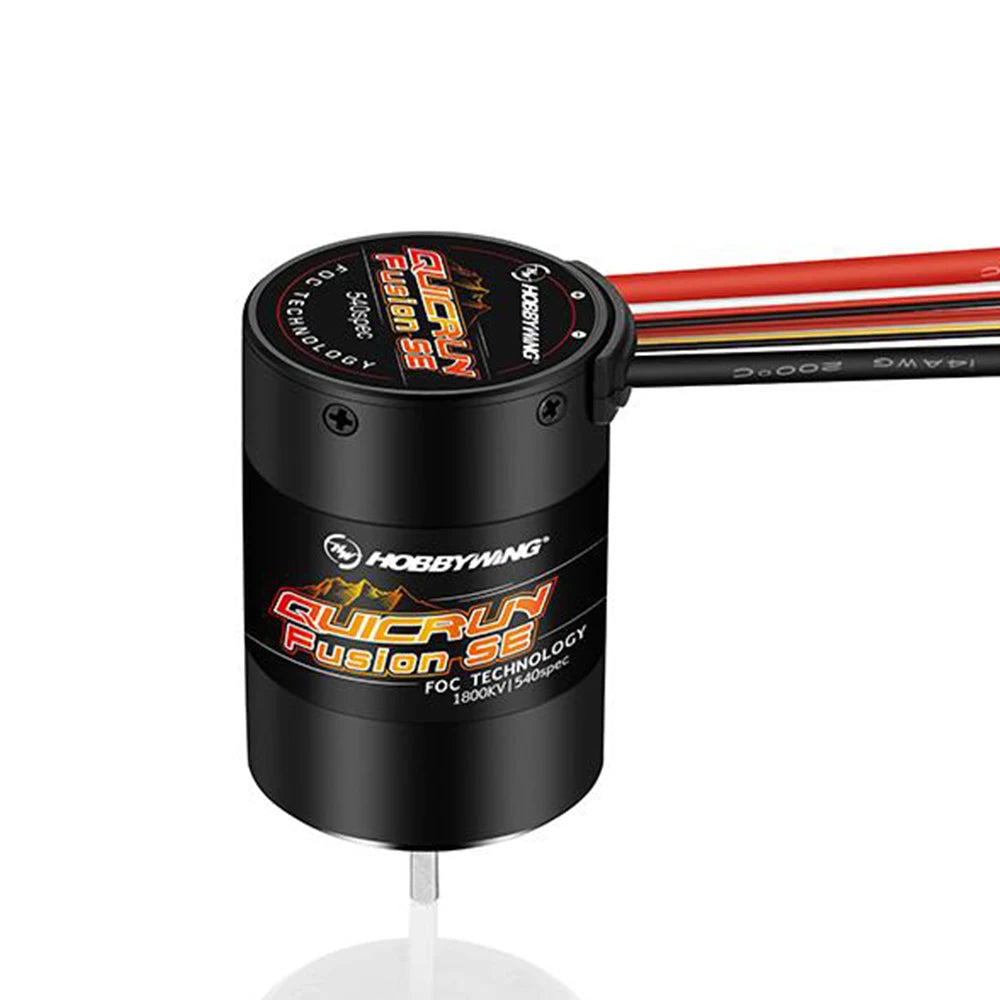

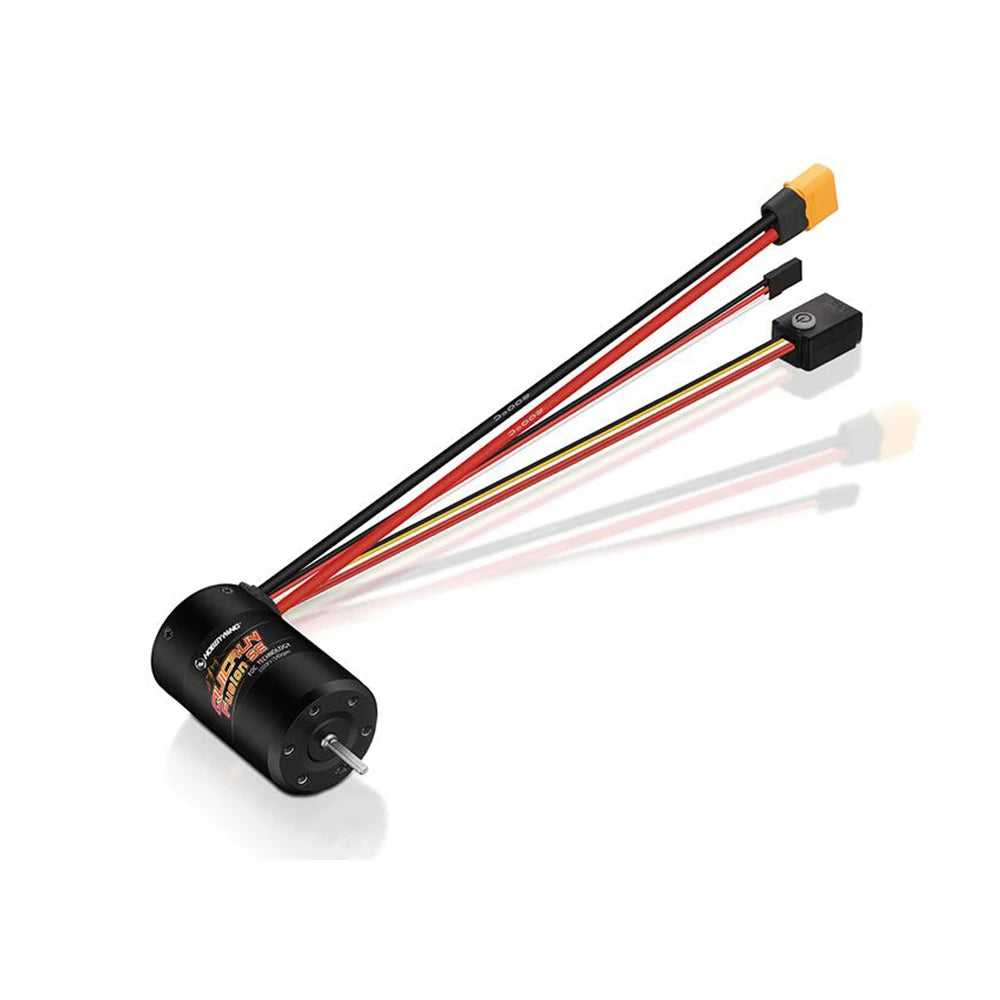

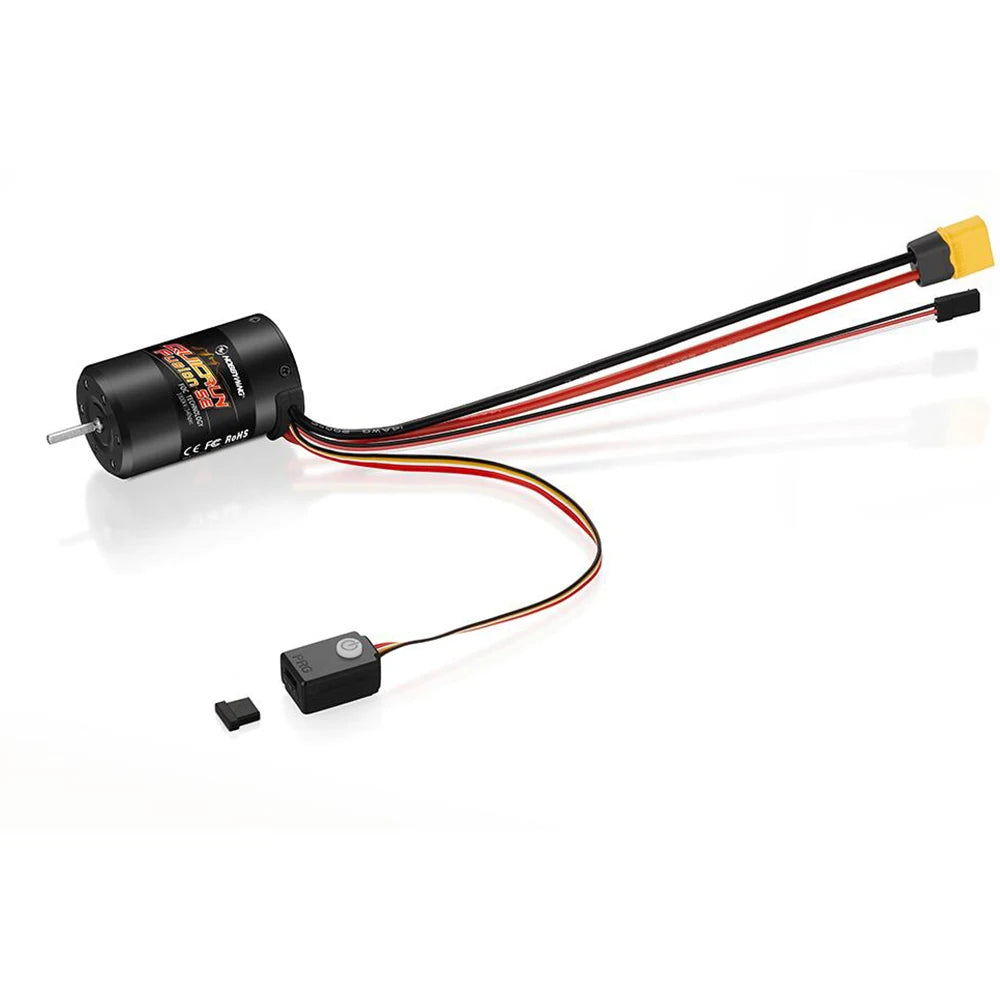

HobbyWing 2 in 1 QuicRun Fusion Brushless Motor & Built in 40A ESC
HobbyWing 2 in 1 QuicRun Fusion Brushless Motor & Built in 40A ESC
- FREE Shipping for Orders over $29!
- All orders dispatched within 24 hours!
- Easy 30 Day Returns!
The HobbyWing Fusion SE offers a cutting-edge, space-saving design by combining a 1/10 brushless motor and ESC into a single unit. This 2-in-1 solution is perfect for rock crawler enthusiasts looking for superior performance and durability in all conditions. With its smart torque management, waterproof design, and easy programmability, the Fusion SE ensures that your RC crawler can tackle any terrain with ease.
The Hobbywing Fusion SE provides an integrated, space-saving solution for RC builders. Its 58mm length is optimized to fit into more vehicle types, making it a versatile choice for 1/10 scale rock crawlers. With a powerful brushless motor and a 40A ESC, this waterproof system is ideal for any terrain.
Features:
1/10 Brushless Motor and ESC: The Fusion SE integrates a Hobbywing Sensored brushless motor with an FOC (Field-Oriented Control) ESC, providing unmatched control and power delivery for rock crawlers. The ESC intelligently adjusts the motor output to match driver inputs, ensuring smooth and responsive performance both uphill and downhill.
Smart Torque Management: This system allows the ESC to adjust the motor for inclines and descents automatically, providing consistent performance under any load. The closed-loop control and smart torque output deliver exceptional control during climbs and descents.
Waterproof Design: Rated IP67, the Fusion SE is designed to withstand harsh conditions, including water, dust, and debris. This robust waterproofing ensures the motor continues to perform reliably in all weather and track conditions.
Rock Crawler Specific Features: The Fusion SE is powered by proven FOC technology and offers 8 levels of drag brake force and 9 levels of drag brake rate. This allows drivers to fine-tune their crawler’s hill-holding power and overall driving performance. The drag brake capability can be up to twice as strong as traditional brushless setups.
Durability: Built with silicon rubber gaskets, electronic buttons, and high-quality hardware, the Fusion SE is engineered for longevity. It’s designed to handle the daily rigors of RC rock crawling, ensuring a long life of reliable performance.
Specifications:
- Brand: HobbyWing
- Model: QuicRun Fusion SE
- Scale: 1/10th
- Brushed/Brushless: Brushless (BL)
- Sensored/Sensorless: Sensored (SD)
- Waterproof Rating: IP67
- Continuous/Peak Current: 40A
- Input Voltage: 2-3S LiPo / 6-9 Cell NiMH
- BEC Output: 6V/7.4V @ 4A, 6A peak
- Motor KV: 1200KV / 1800KV
- Motor Dimensions: 36mm (Diameter) x 58.1mm (Length)
- Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
- Motor Poles: 4
- Input Wires: Red-14AWG-200mm / Black-14AWG-200mm
- Input Connectors: XT60
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD Program Box: Not Supported
- OTA Programmer: Not Supported
- Program Port: Independent programming interface (switch position)
- Firmware Upgrade: Not Supported
- Applications: 1/10th rock crawler
- Size: 36 x 58.1mm
- Weight: 201g (including wires & connectors)
Package Includes:
- 1x Hobbywing Fusion SE Brushless Motor
- 1x User Manual
Elevate your RC rock crawling experience with the Hobbywing Fusion SE. This powerful, durable, and intelligent motor and ESC combo is the perfect upgrade for any 1/10th scale rock crawler, offering unbeatable control and performance in all conditions.
