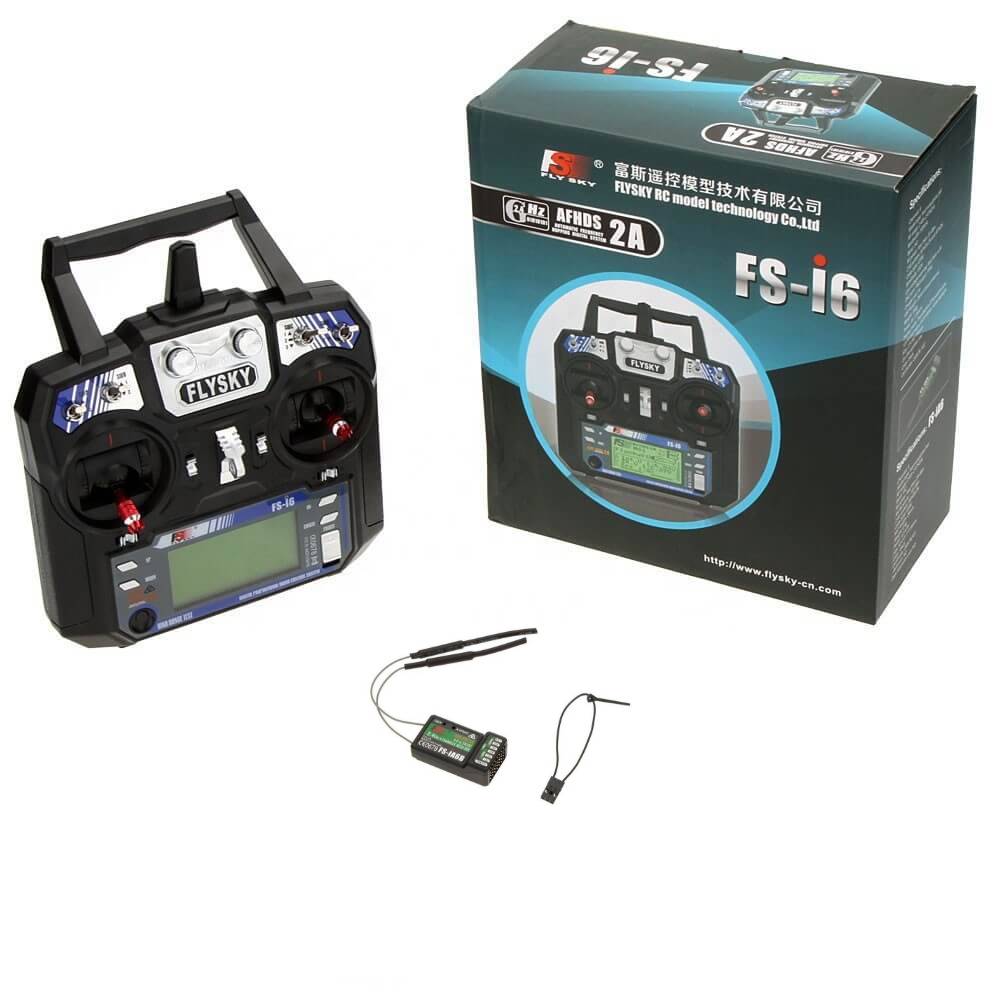

Flysky FS-i6 Transmitter with FS-i6A / FS-i6AB Receiver
Flysky FS-i6 Transmitter with FS-i6A / FS-i6AB Receiver
- FREE Shipping for Orders over $29!
- All orders dispatched within 24 hours!
- Easy 30 Day Returns!
- Works in the frequency range of 2.408 to 2.475GHz. This brand has been divided into 135 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithm.
- This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency brand. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission
- Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter.
- This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.
- AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
- AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.

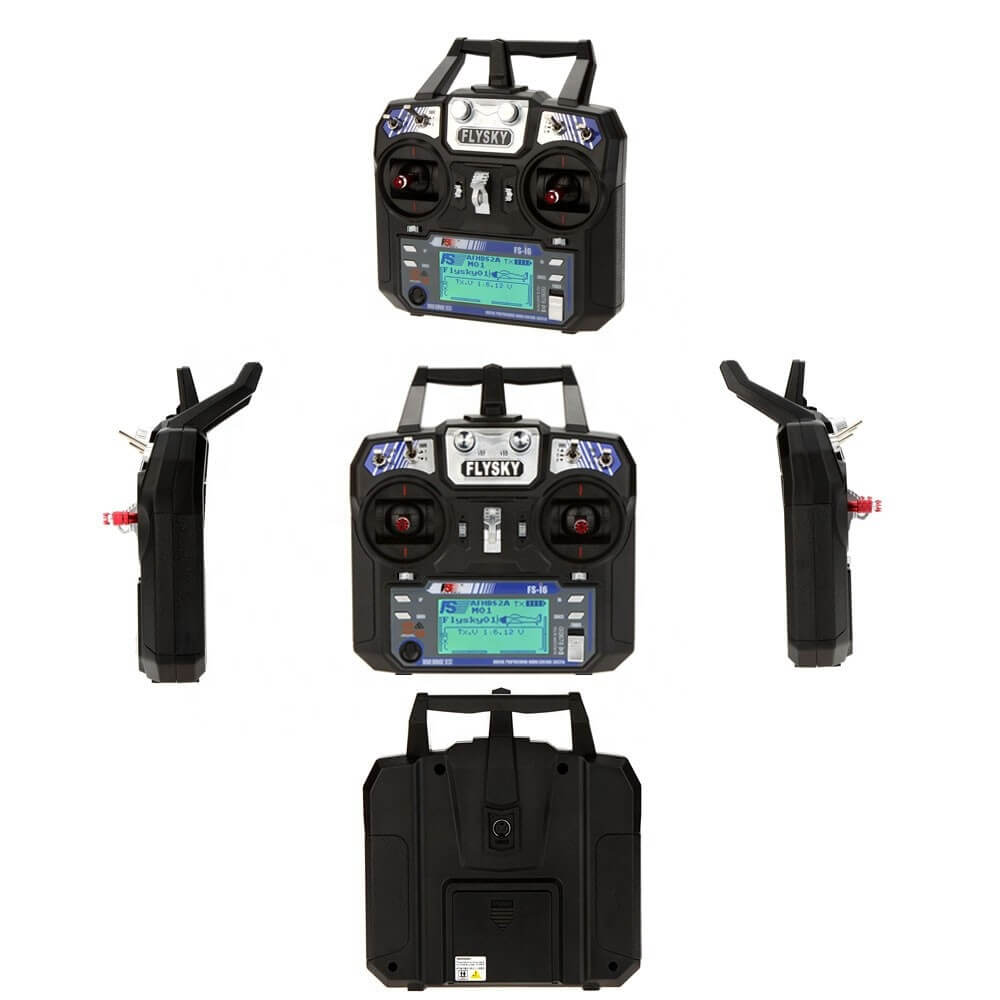

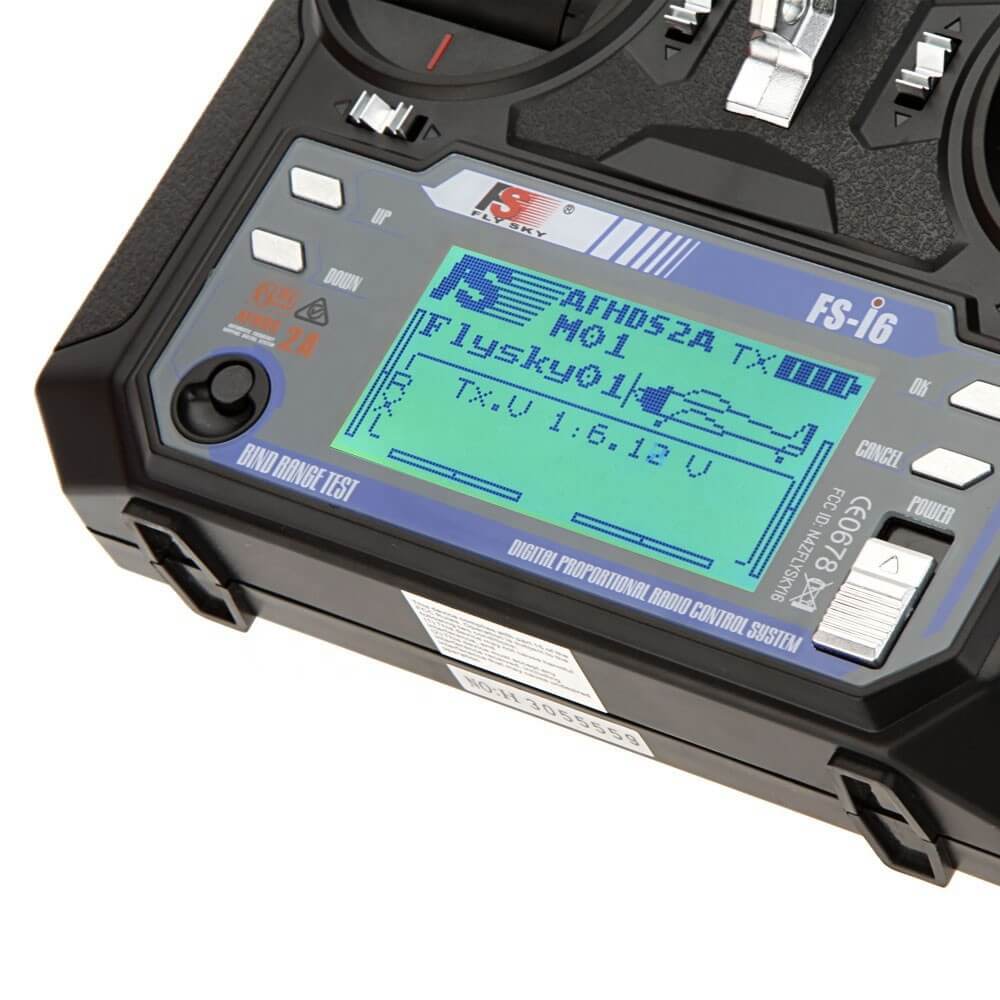

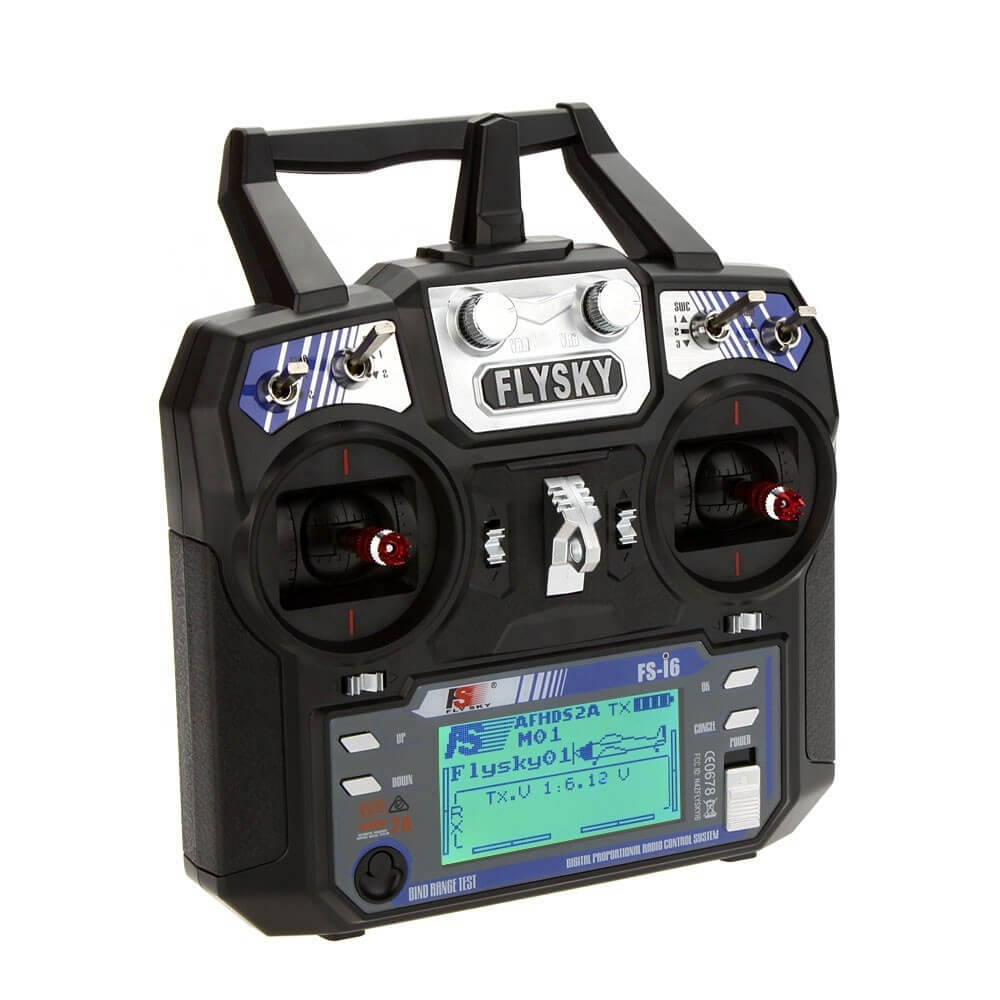

FS-i6 Transmitter:
- Channels: 6 Channels
- RF Range: 2.408-2.475GHz
- Bandwidth: 500KHz
- Band: 135
- RF Power: Less Than 20dBm
- 2.4G System: AFHDS 2A and AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2;Output:PPM
- Transmitter Weight: 392g
- Transmitter Size: 174x89x190mm
- Power: 6V 1.5AA x4
- On-line update: Yes
- Certificate: CE,FCC
FS-iA6 Receiver:
- Channels: 6 Channels
- RF Range: 2.408-2.475GHz
- Band: 135
- RF Power: Less Than 20dBm
- RX Sensitivity: -105dBm
- 2.4G System: AFHDS 2A
- Code Type: GFSK
- Antenna Type: Dual antenna (150mm x 2)
- Weight: 7g
- Power: 4.0-6.5v
- Size: 40.4x21.1x7.3mm
- Certificate: CE, FCC ID: N4ZFLYSKYIA6
- i-BUS Port: No
- Data Acquisition Port: No

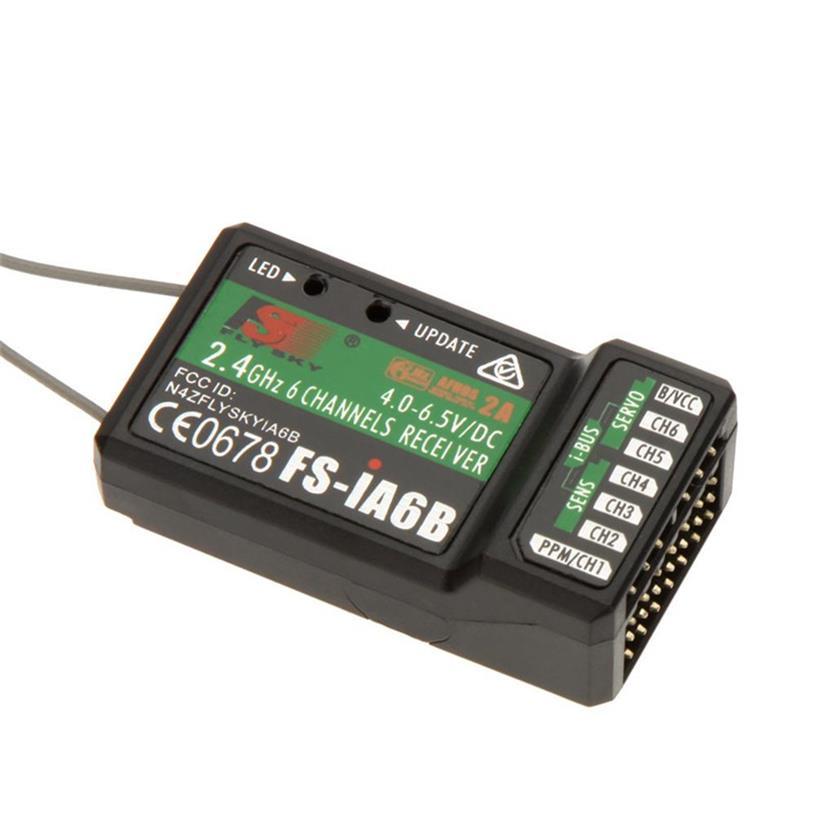

FS-iA6B Receiver:
- Channels: 6 Channels
- RF Range: 2.408-2.475GHz
- Band: 135
- RF Power: Less Than 20dBm
- RX Sensitivity: -105dBm
- 2.4G System: AFHDS 2A
- Code Type: GFSK
-
Antenna type: Dual copper tube antenna (150mm x 2)
- Weight: 16.4g
- Power: 4.0-6.5v
- Size: 42.6x26.1x15.1mm
- Certificate: CE, RCM, FCC ID: N4ZFLYSKYIA10
- i-BUS Port: Yes
- Data Acquisition Port: Yes
Package Includes:
- 1x FS-i6 Transmitter
- 1x FS-iA6 or FS-iA6B Receiver
- 1x Manual
