FeeTech FS90MG 9g Micro Metal Gear Servo
FeeTech FS90MG 9g Micro Metal Gear Servo
- FREE Shipping for Orders over $29!
- All orders dispatched within 24 hours!
- Easy 30 Day Returns!
The FeeTech FS90MG Micro Metal Gear Servo is a compact, high-performance servo featuring metal gears for increased strength and durability. Its precise analog control and robust build make it suitable for various applications, including RC models, Arduino projects, robotics, and other DIY engineering projects.
Key Features:
Durable Metal Gears:
Designed for high reliability and longevity, ensuring smooth operation under load.
Compact Size with Powerful Performance:
Despite its small footprint, this servo delivers a stall torque of up to 1.8kg.cm @ 6.0V, making it suitable for light to medium-duty tasks.
Precise Analog Control:
Operates with a pulse range of 900μs–2100μs, providing accurate positioning with minimal dead band width (8μs).
High-Speed Operation:
Delivers quick response with a no-load speed of 0.12s/60° @ 4.8V and 0.10s/60° @ 6.0V, ideal for dynamic applications.
Versatile Applications:
Suitable for RC cars, planes, boats, robotic arms, Arduino-based projects, and more.
Specifications:
- Brand: Feetech
- Model: FS90MG
- Gear Type: Metal
- Motor Type: DC Motor
- Control System: Analog
-
Torque:
- 1.5kg.cm @ 4.8V
- 1.8kg.cm @ 6.0V
-
Speed:
- 0.12sec/60° @ 4.8V
- 0.10sec/60° @ 6.0V
- Operating Angle: 120°
- Running Degree: 90° ± 3° (1000–2000μs pulse)
- Pulse Range: 900μs–2100μs
- Neutral Position: 1500μs
- Dead Band Width: 8μs
-
Dimensions:
- Main Body: 22.5mm x 26.6mm x 12.0mm
- Including Mounting Tabs: 32.2mm x 31.0mm x 12.0mm
- Connector Wire Length: 20cm

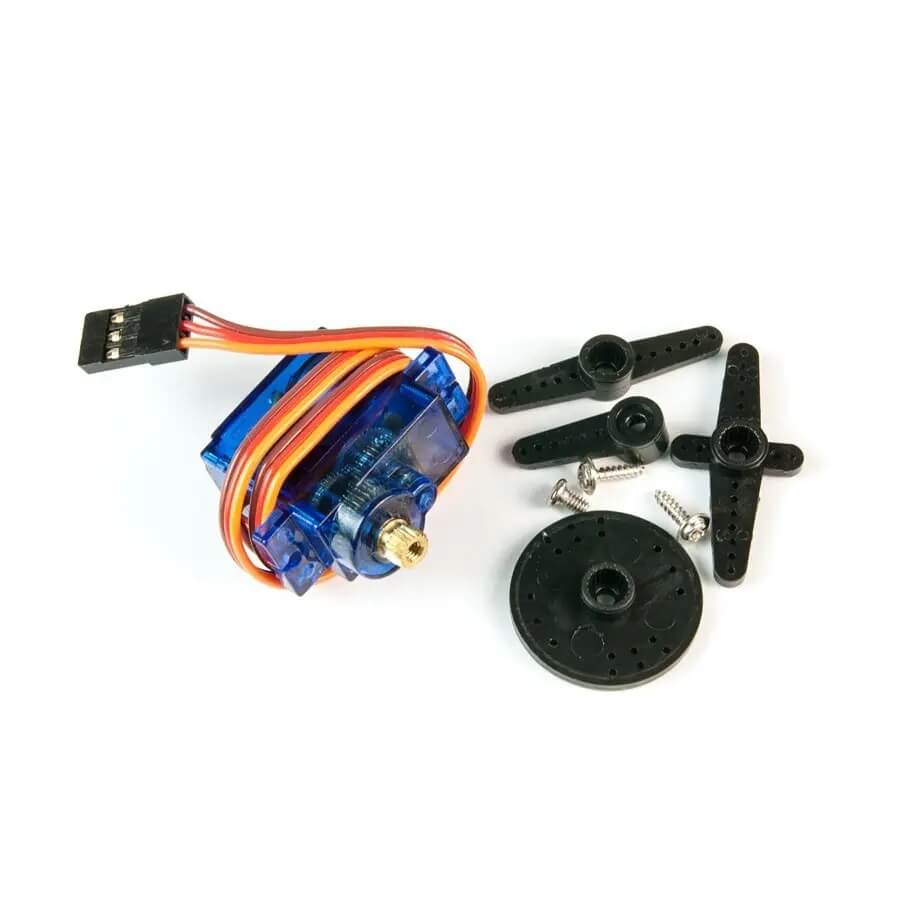

Package Includes:
- 1x Feetech FS90MG Micro Analog Servo
- 4x Servo Arms
- 1x Pack of Mounting Screws
The Feetech FS90MG Micro Servo offers a perfect balance of durability, precision, and speed, making it a valuable addition to any RC or robotics project.
