Feetech 35KG Metal Gear Waterproof Digital Servo – 180°

Feetech 35KG Metal Gear Waterproof Digital Servo – 180°

$39.95 AUD
$39.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • FREE Shipping for Orders over $29!
  • Dispatch Within 1 Business Day!
  • 30-Day Change of Mind Returns!

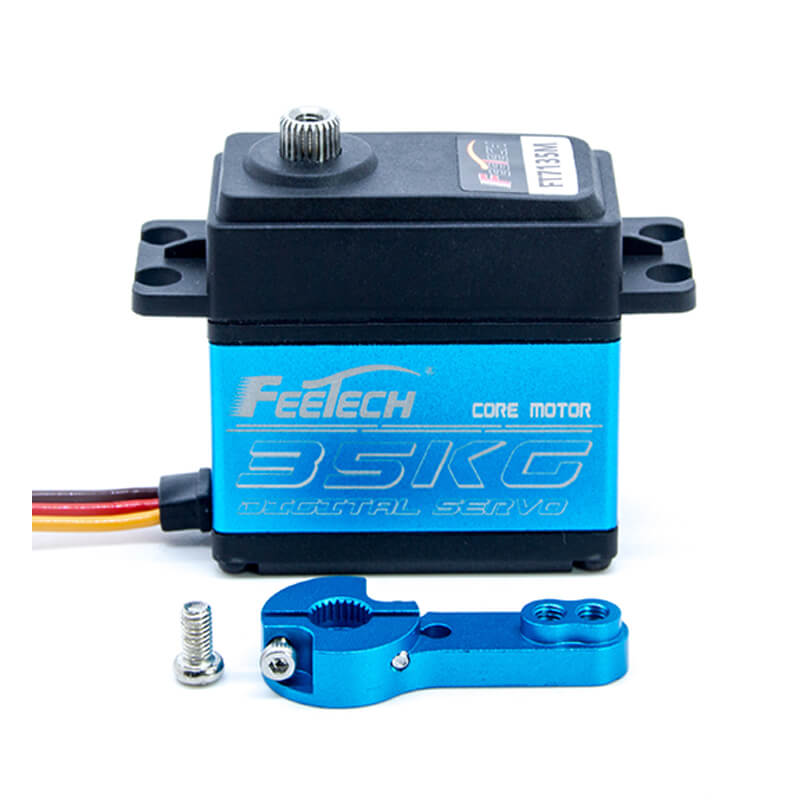

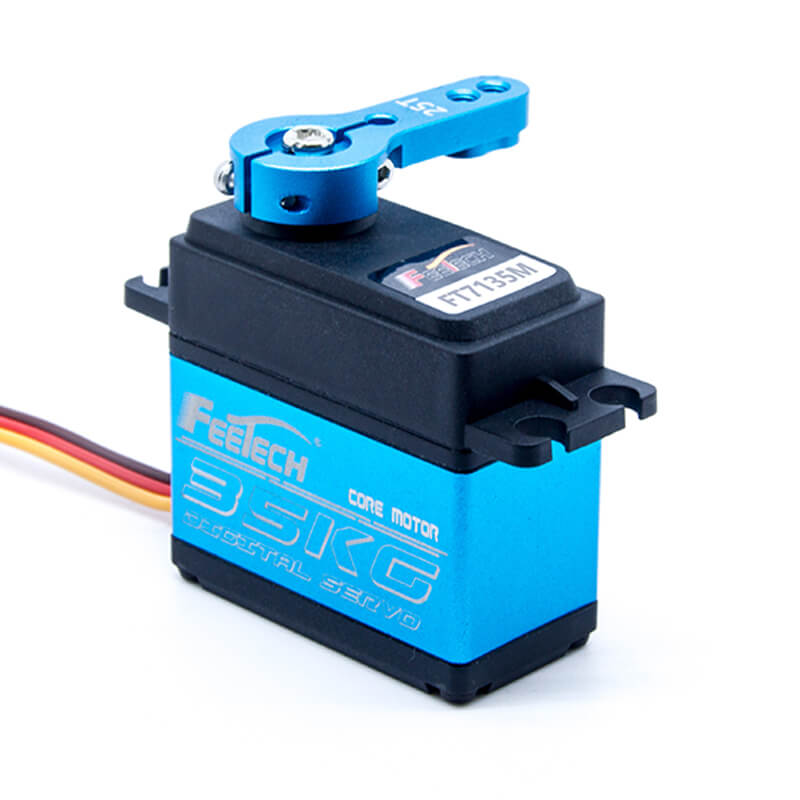

The Feetech FT7135M is a powerful 35 kg digital servo designed for demanding RC applications. Featuring durable steel gears, an aluminium housing and a waterproof design, it delivers reliable steering performance for RC crawlers, trucks, cars and other compatible models.

Its 180-degree operating travel, precision ball bearings and 25T output spline make it an excellent choice for high-torque RC builds and upgrades.

Key Features:

  • Powerful 35 kg high-torque servo

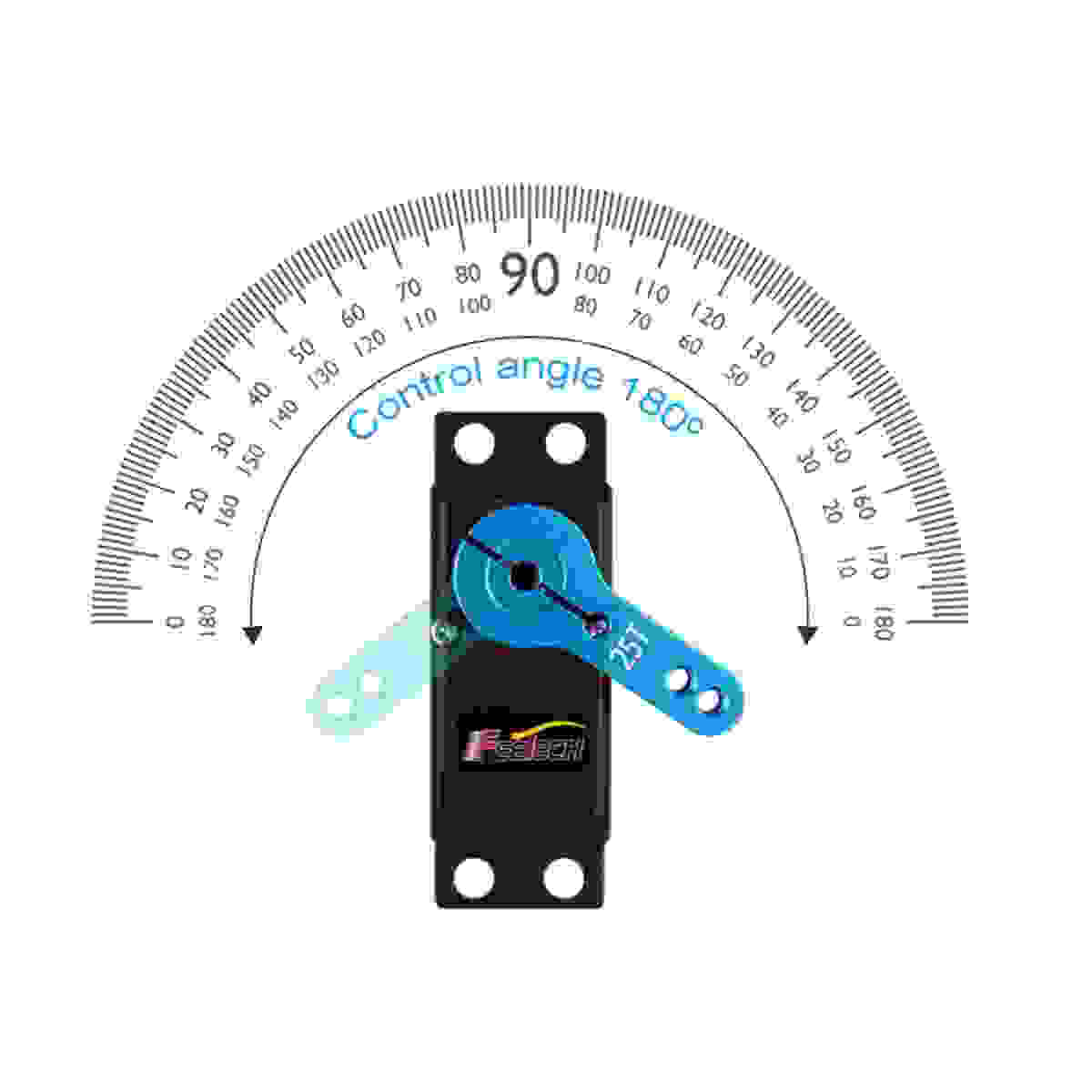

  • 180° operating travel
  • Waterproof design
  • Durable steel gears
  • Aluminium housing
  • Digital control system
  • Dual ball-bearing construction
  • 25T output spline
  • Built-in electronic stall protection

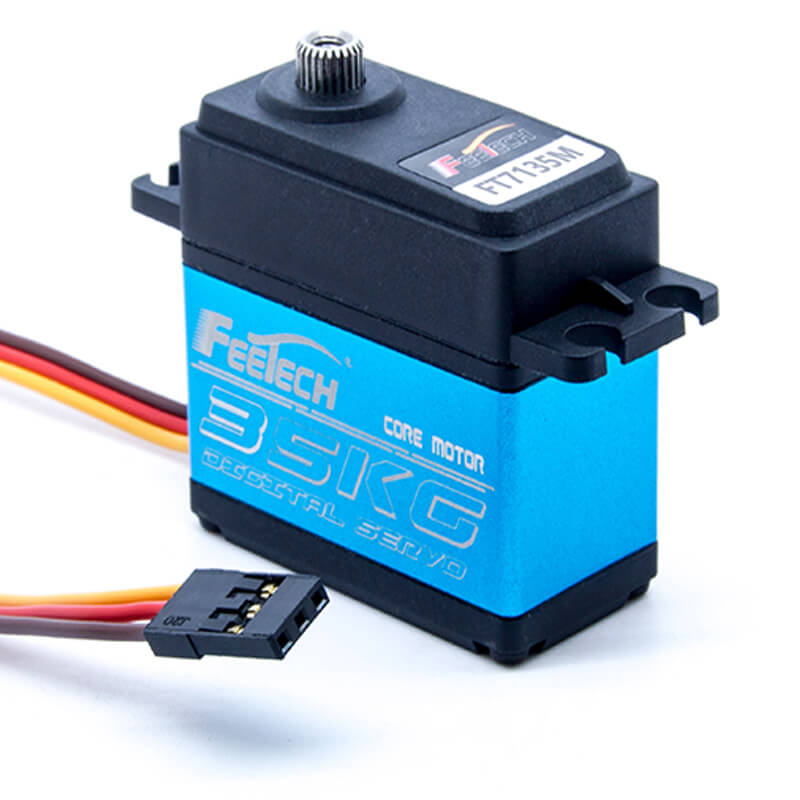

  • JR-style connector with a 30 cm cable

Specifications:

  • Model: FT7135M
  • Dimensions: 40.17 × 36.5 × 20.16 mm
  • Weight: 64.5 ± 1 g
  • Case Material: Aluminium
  • Gear Material: Steel
  • Bearing Type: Ball bearings
  • Motor Type: Core motor
  • Horn Type: 25T / 5.9 mm
  • Gear Ratio: 1:356
  • Backlash: ≤0.5°
  • Rocker Offset: 0°
  • Rocker Screw: M3 × 6
  • Connector Type: JR
  • Cable Material: PVC
  • Cable Length: 30 ± 0.5 cm

Angle Sensor:

  • Sensor Type: Carbon-film potentiometer
  • Sensor Angle: 220°
  • Minimum Rated Life: 1,000,000 cycles

Control Specifications:

  • Control System: Digital comparator
  • Operating Travel: 180° ± 5° at 500–2500 μsec
  • Left and Right Travel Deviation: ≤5°
  • Centring Deviation: ≤1°
  • Neutral Position: 1500 μsec
  • Dead Band Width: ≤4 μsec
  • Rotation Direction: Counterclockwise at 1500–2500 μsec
  • Pulse Width Range: 500–2500 μsec
  • Command Signal: Pulse-width modulation
  • Electronic Protection: Activates after an 8-second stall

Connector Pin Configuration:

  1. Signal
  2. VCC
  3. GND

Please Note:

Check your RC model’s mounting dimensions, operating voltage, connector type and 25T spline compatibility before purchasing.

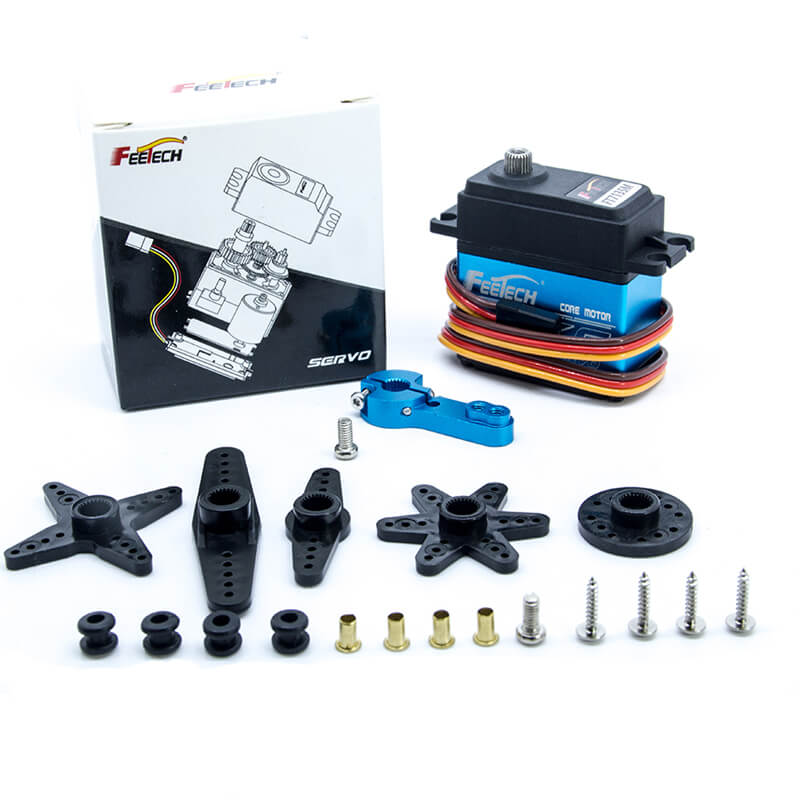

Package Includes:

  • 1 × Feetech FT7135M 35KG Digital Servo
