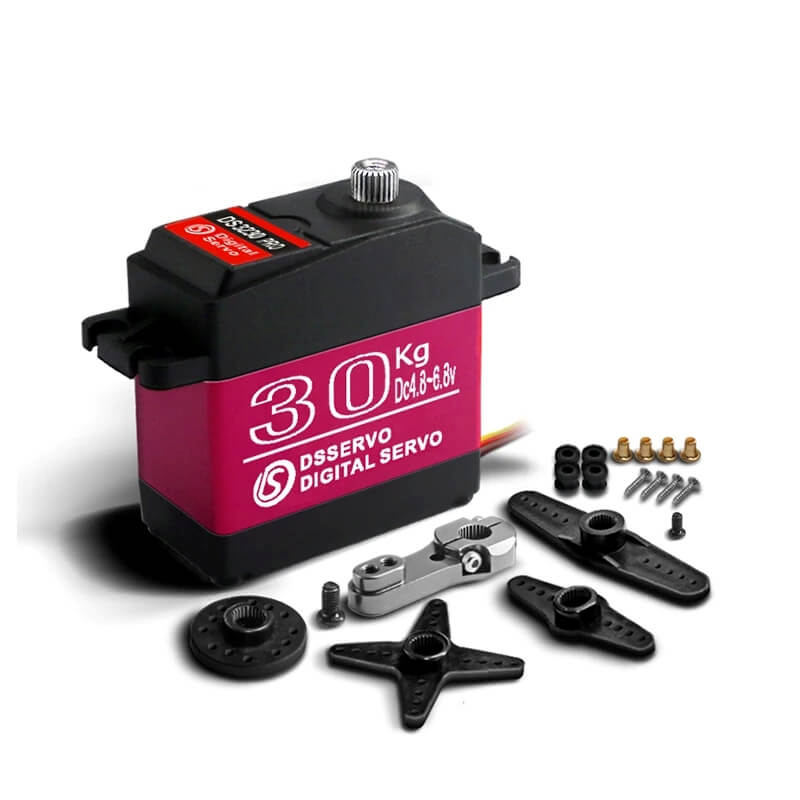

DsServo 30kg Metal Gear Waterproof Digital Servo

DsServo 30kg Metal Gear Waterproof Digital Servo

$33.95 AUD
$0.00 AUD $33.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
  • FREE Shipping for Orders over $29!
  • Dispatch Within 1 Business Day!
  • 30-Day Change of Mind Returns!



Take your RC performance to the next level with the DsServo 30kg Metal Gear Waterproof Digital Servo. Engineered for durability and precision, this servo offers impressive torque, speed, and waterproof capabilities, making it the perfect choice for RC cars, crawlers, and off-road vehicles that need reliable performance in harsh environments. Featuring digital control, metal gears, and a high-quality carbon brush motor, this servo ensures smooth, powerful, and precise movement, whether you're navigating difficult terrains or performing high-speed maneuvers.

Key Features:

  • IP66 waterproof rating ensures protection from water and dust

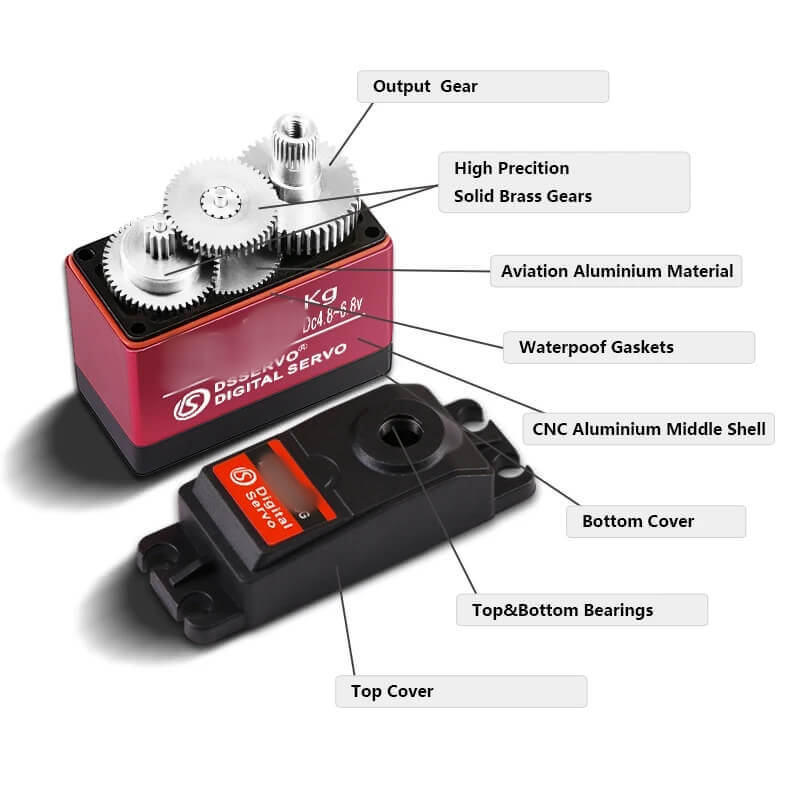

  • Metal gear construction for increased durability and strength
  • Digital control for precise operation and improved performance
  • 25T horn gear spline for compatibility with a wide range of RC vehicles
  • Dual bearings (2BB) for smooth and stable operation
  • High-quality aluminum and engineering plastic case for enhanced heat dissipation and durability


Specifications:

  • Brand: DsServo
  • Model: DS3230 30kg
  • Torque:
    • 28.5kg.cm @5v
    • 38kg.cm @6.8v
  • Speed:
    • 0.11sec/60° @5v
    • 0.09sec/60° @6.8v

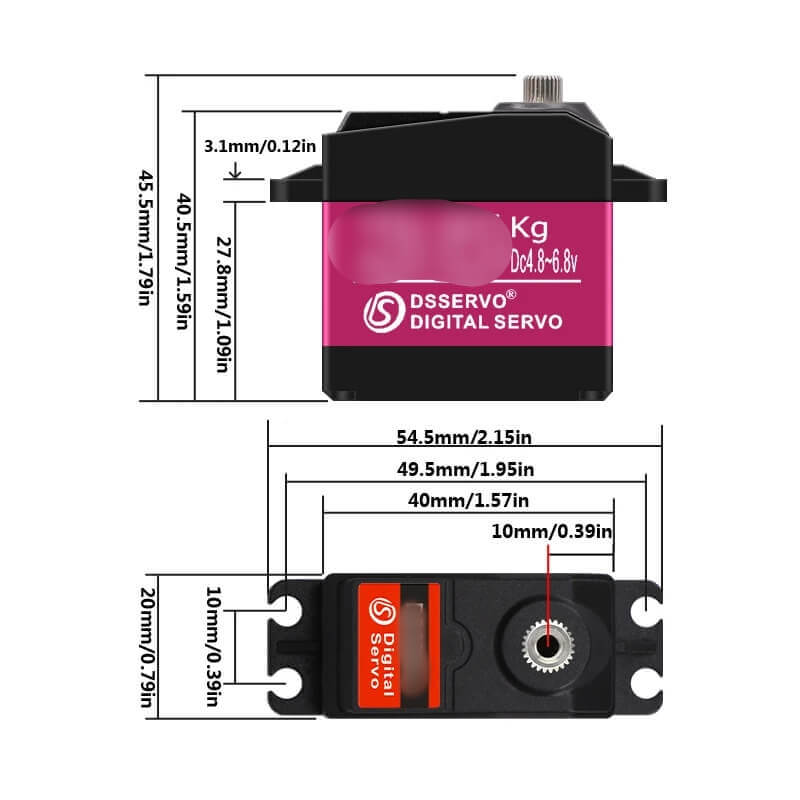

  • Size: 40 x 20 x 40.5mm (Check image for details)
  • Weight: 58g±2g
  • Bearing: 2BB
  • Horn gear spline: 25T (Diameter: 5.9mm)
  • Case Material: Engineering plastics + Aluminum alloy
  • Connector Wire Length: 320mm±5mm
  • Motor: Carbon brush motor
  • Waterproof Rating: IP66
  • Storage Temperature: -30°C to 80°C
  • Operating Temperature: -25°C to 70°C

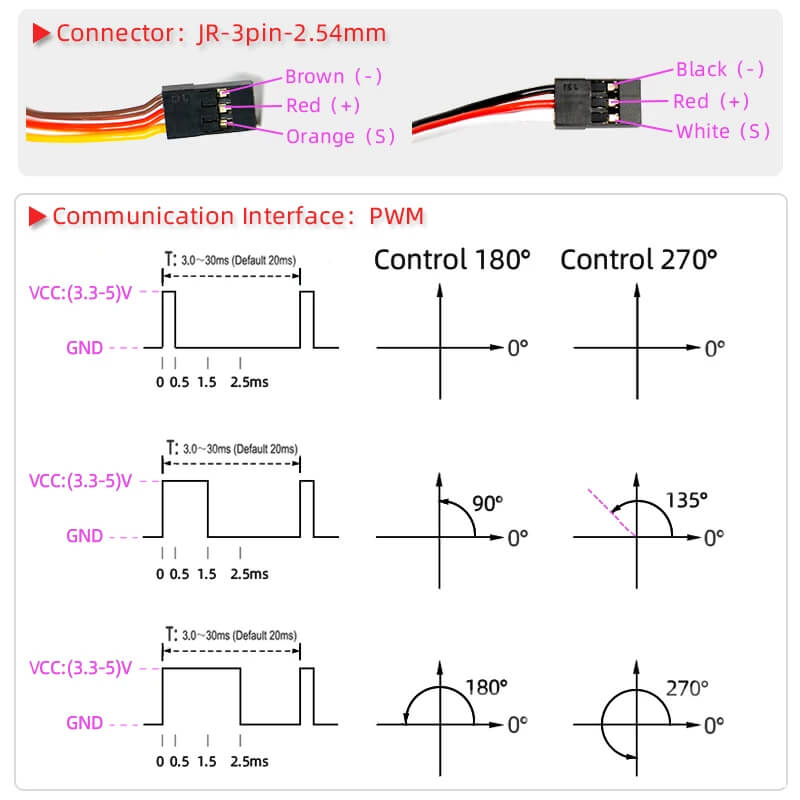

Electrical Specifications:

  • Voltage Range: 4.8V - 6.8V
  • Command Signal: Pulse width modification
  • Amplifier Type: Digital controller

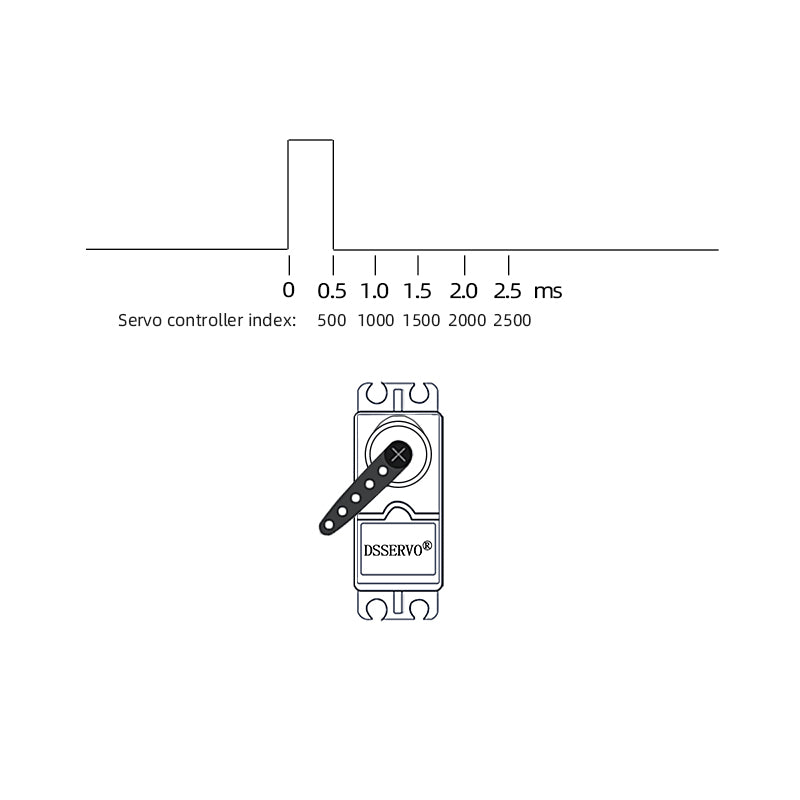

  • Pulse Width Range: 500 to 2500usec
  • Neutral Position: 1500usec
  • Running Degree: 180±3° (PWM 500-2500usec) or 270±3° (PWM 500-2500usec)
  • Dead Band Width: 3 usec
  • Rotating Direction: Counter-clockwise (PWM 1000 to 2000usec)


Package Includes:

  • 1x 30kg Digital Servo
  • 1x 25T Metal Servo Arm
  • 1x Accessory Kit

Versatile and Reliable Performance
The DsServo 30kg Metal Gear Waterproof Digital Servo is ideal for enthusiasts looking for high torque, fast response, and durability. With its waterproof design and metal gear construction, this servo is built to endure tough conditions, delivering smooth and consistent performance every time.
