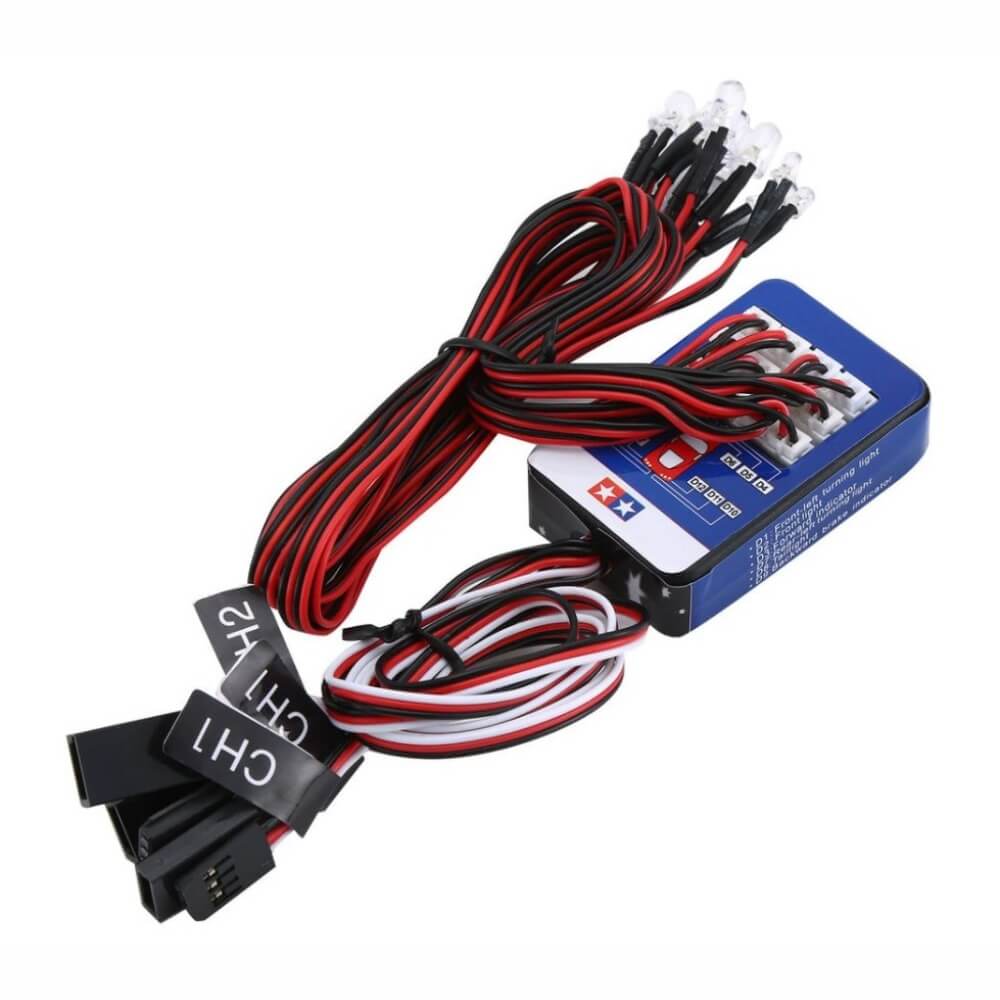

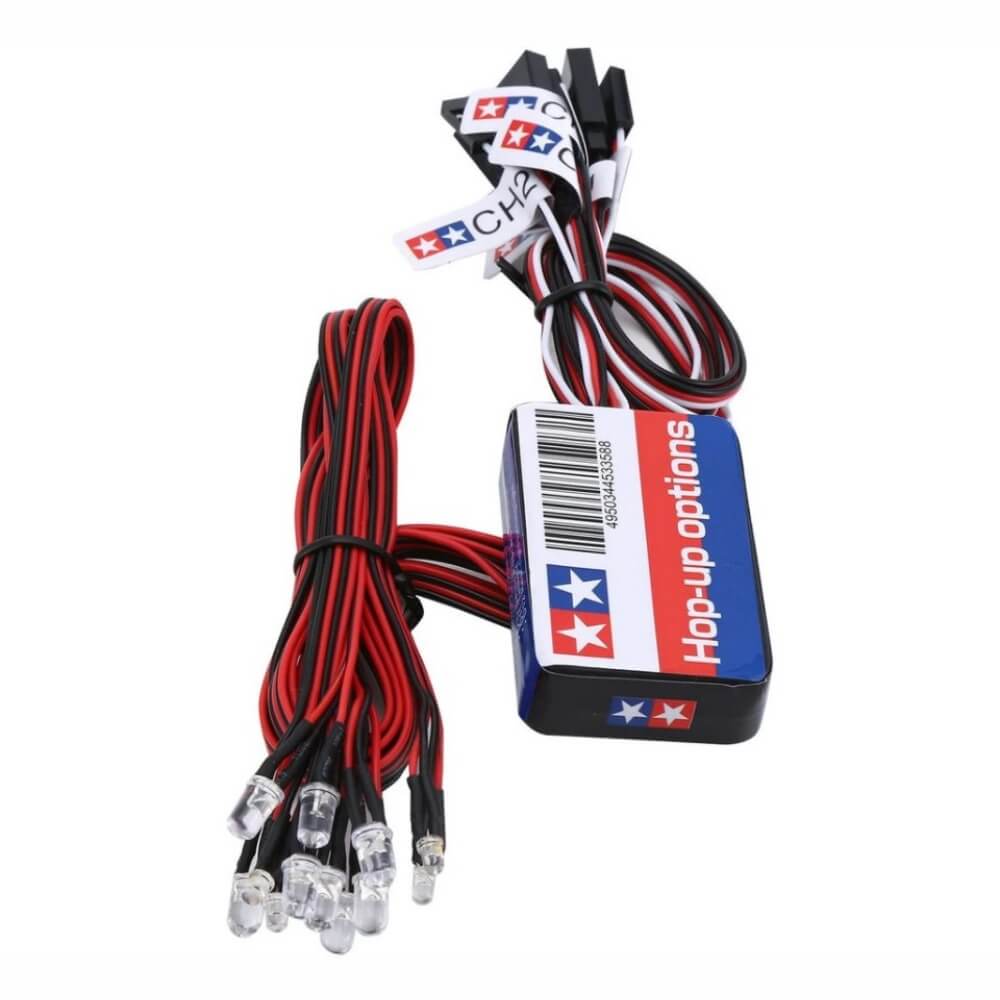

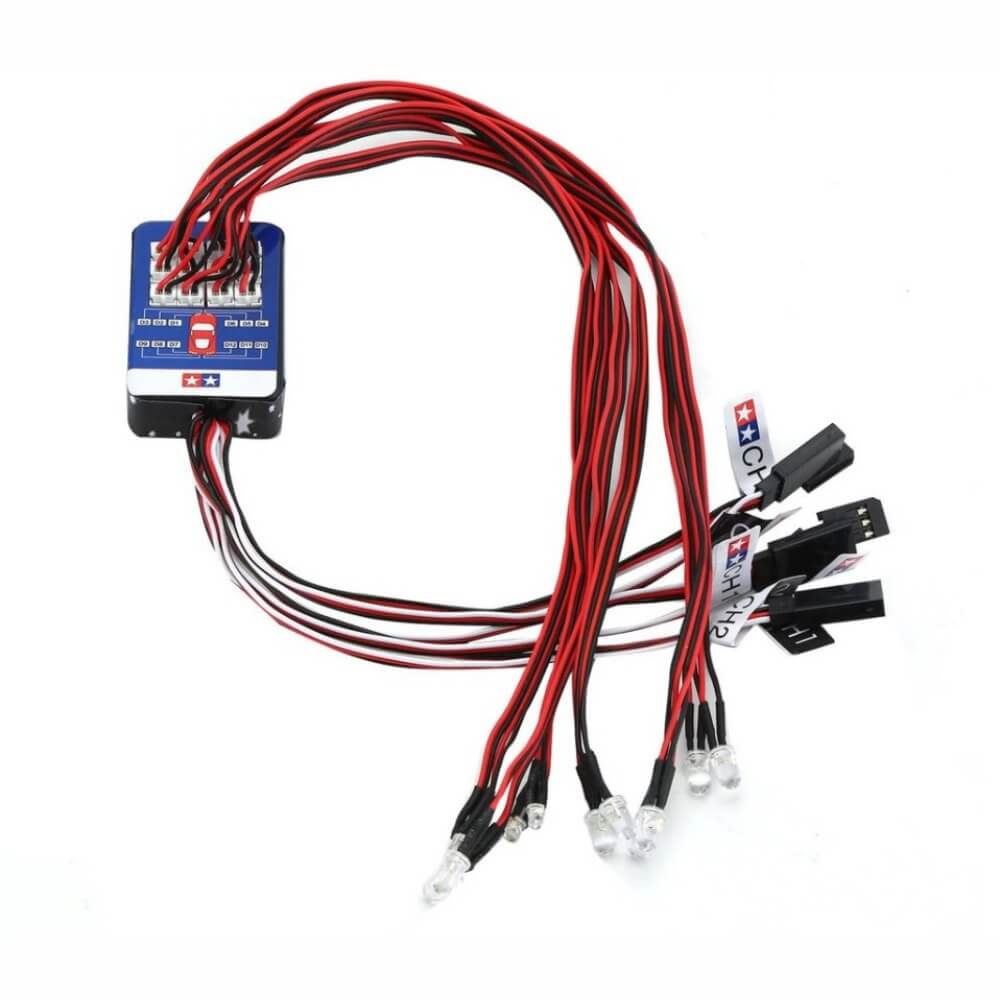

12 LED Lighting Kit for 1/10 & 1/8 RC Cars, Trucks & Crawlers

Transform your RC vehicle with realistic lighting effects using this 12 LED Lighting Kit. Featuring intelligent headlights, brake lights, tail lights, and turn signals, this lighting system brings your RC car, truck, or crawler to life with scale realism and enhanced visibility.

Designed for easy installation, the system connects directly to your receiver and responds automatically to your driving inputs. Whether you're trail driving at night or creating a realistic scale build, this lighting kit is the perfect finishing touch.

Features

Complete 12 LED Lighting System
Includes working headlights, brake lights, tail lights, and turn indicators for a realistic driving experience.

Smart Headlight Control
Supports both automatic and transmitter-controlled headlight operation (depending on receiver configuration).

Automatic Turn Signals
Indicators flash automatically when steering left or right.

Realistic Brake Lights
Brake lights illuminate automatically during braking for enhanced realism.

Wide Compatibility
Suitable for most 1/10 and 1/8 RC cars, trucks, crawlers, trail trucks, and off-road vehicles.

Supports Standard & High-Voltage Receivers
Compatible with most 2.4GHz RC systems, including GT2, GT3B, and many others.

Easy Installation
Designed for direct installation into most RC body shells with simple plug-and-play wiring.

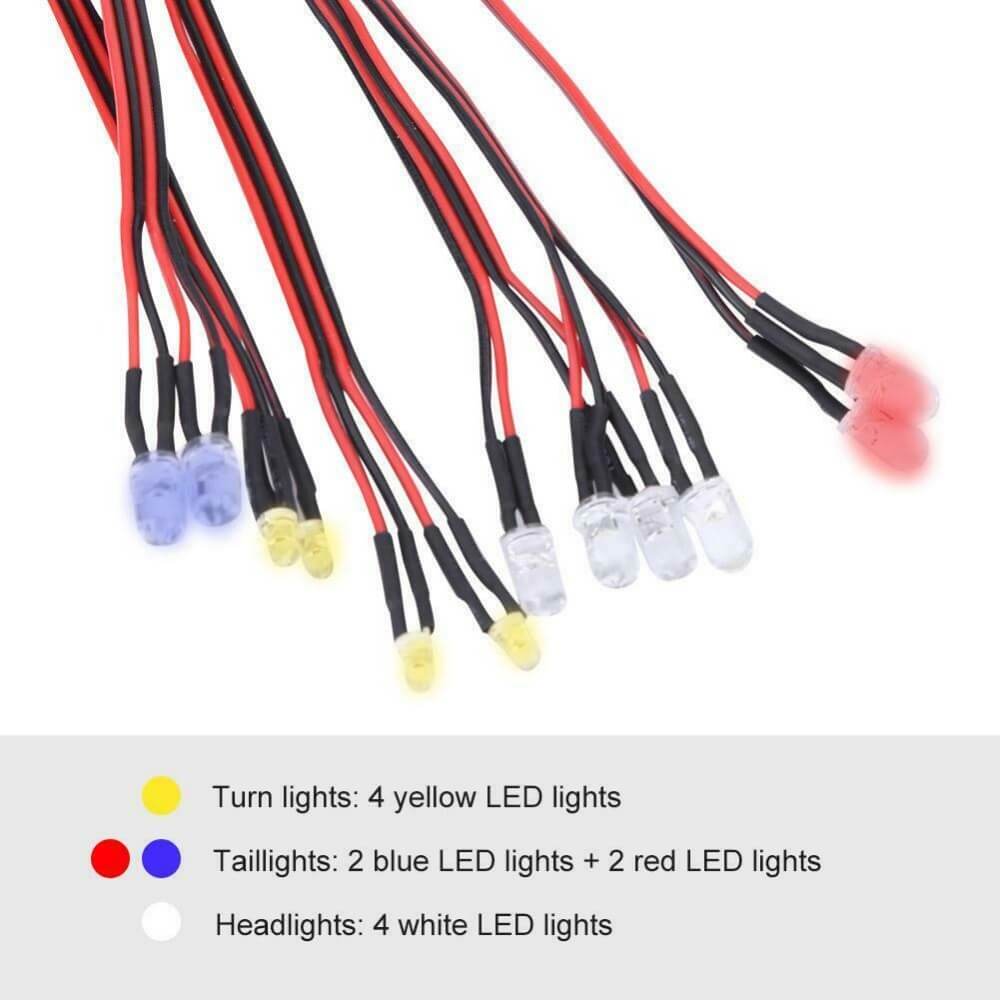

Lighting Configuration

• 4 × White LED Headlights
• 4 × Yellow LED Turn Signals
• 2 × Blue LED Tail Lights
• 2 × Red LED Brake Lights

Intelligent Lighting Functions

Headlights

• 4 × White LEDs
• When connected to CH3, one group of headlights can be switched on and off independently using the transmitter, while the second group automatically illuminates during acceleration.
• Without a CH3 connection, one group remains permanently on, while the second group activates during acceleration.

Turn Signals

• 4 × Yellow LEDs
• Indicators automatically flash in sync with steering input.

Tail & Brake Lights

• Blue Tail Lights
  • Remain illuminated during normal driving.
  • Turn off automatically when the headlights are switched on or when braking.
• Red Brake Lights
  • Illuminate only while braking for realistic stopping effects.

Specifications

• Material: Plastic
• Vehicle Compatibility: 1/10 & 1/8 RC Cars, Trucks & Crawlers
• Total LEDs: 12
• LED Colours:
  • White
  • Yellow
  • Blue
  • Red

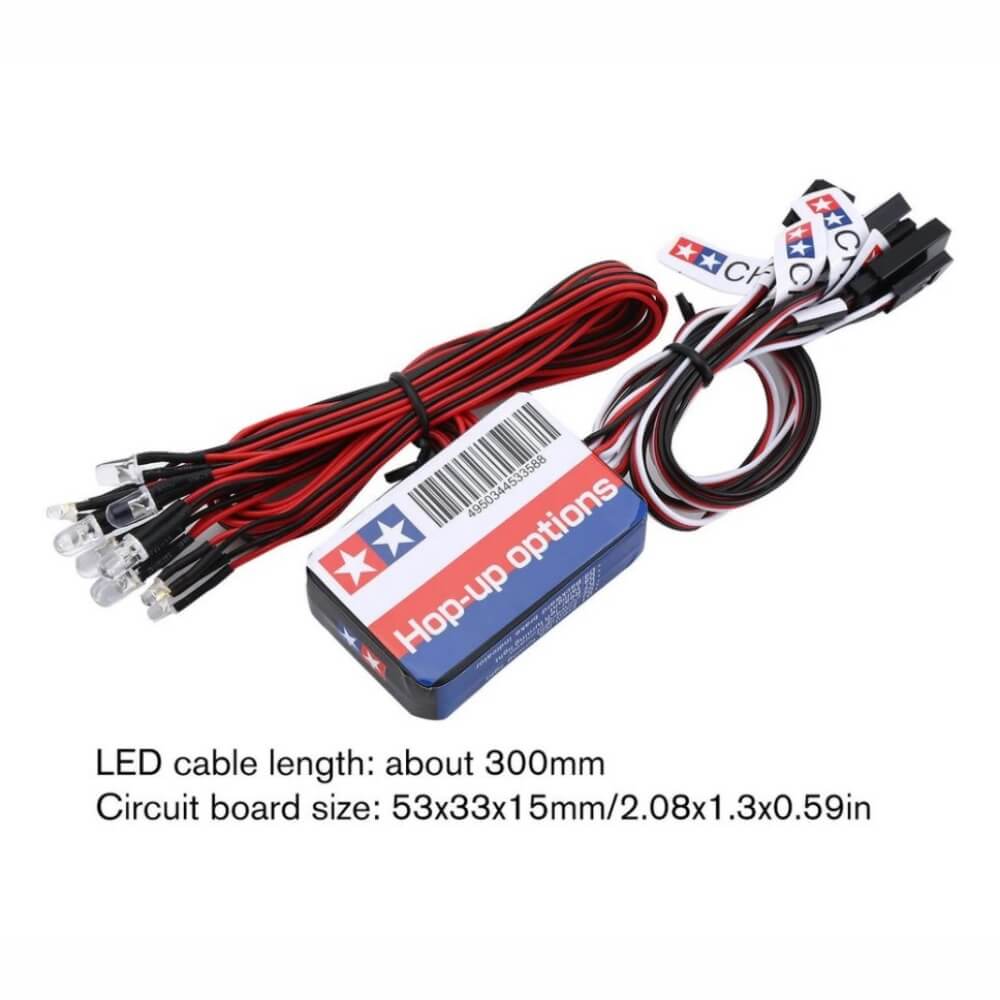

• LED Cable Length: Approx. 30cm
• Weight: Approx. 60g

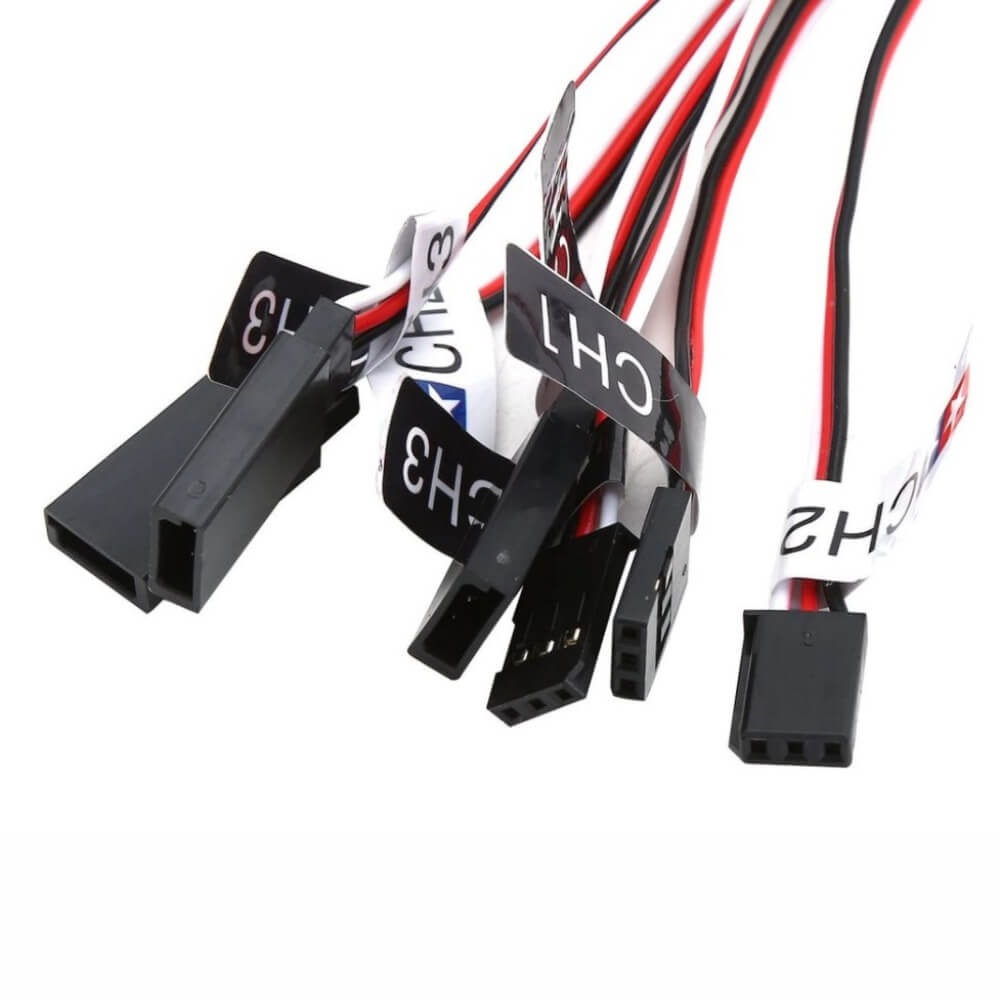

Connection Method

• CH1: Steering Servo
• CH2: ESC
• CH3: Receiver (Optional Headlight Control)

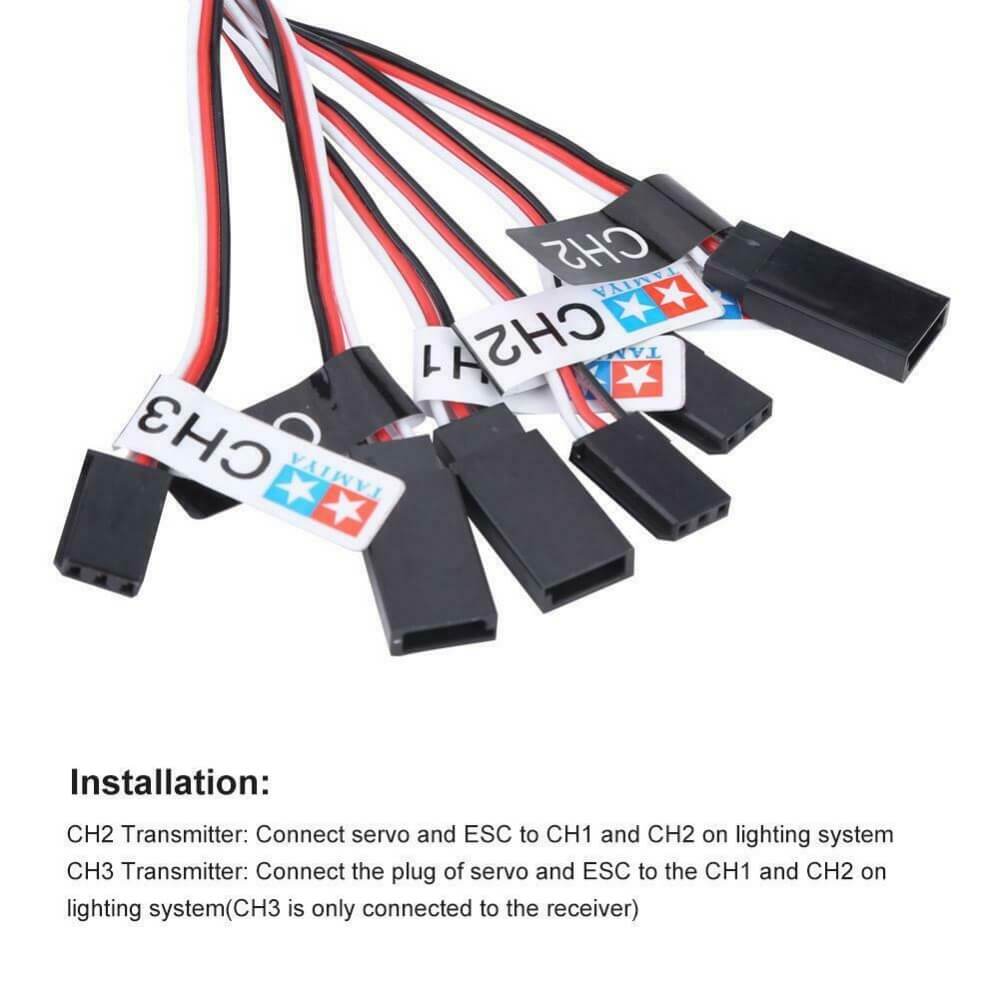

Installation

For 2-Channel Radios

• Connect the steering servo and ESC to CH1 and CH2 on the lighting controller.
• Connect the lighting controller's CH1 and CH2 outputs to the receiver.

For 3-Channel Radios

• Connect the steering servo and ESC to CH1 and CH2 on the lighting controller.
• Connect CH1, CH2, and CH3 from the lighting controller to the receiver.
• CH3 is used exclusively for independent headlight control.

Package Includes

• 1 × 12 LED RC Lighting Kit

Upgrade your RC vehicle with intelligent, realistic lighting effects and enjoy a more immersive driving experience both day and night.
